Multifunctional LED Scoreboard for Different Sports Games

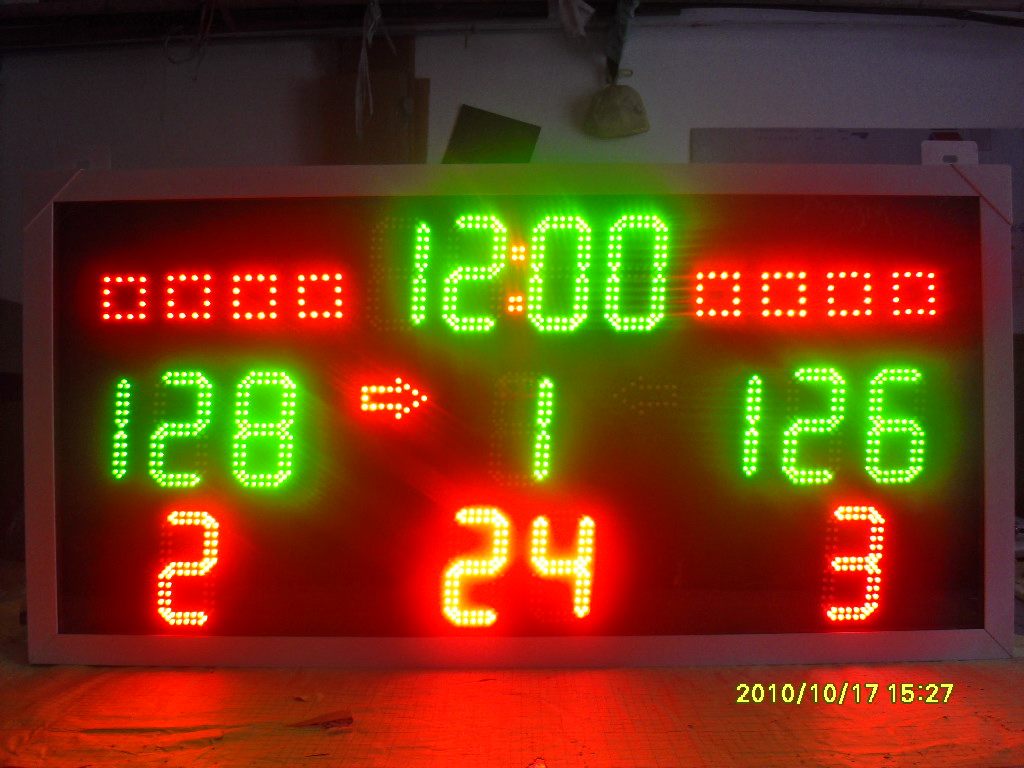

Yx-9 multi-functional electronic scoreboard

1. High timing accuracy: microcomputer control, software timing;

2. Beautiful, generous and light: aluminum alloy spray plastic frame;

3. Convenient installation: the top of the outer frame is provided with a mounting hole for air plug connection;

4. High visibility: imported super bright LED light source with astigmatism, high brightness, large viewing angle, small power consumption and long service life;

5. Clear interface: two color display;

6. Intuitive operation: the operation panel is printed with relevant words or characters;

7. High reliability: special console;

8. Easy to move: optional mobile rack;

9. Comply with the principle of ergonomics, effectively avoid misoperation;

10. Wired and wireless options;

11. There are four suspension instructions for each team;

12. Score display (0-199 points);

13. Foul display of the whole team (can also be displayed as a game ratio of 0-9);

14. Game time display (0-99 minutes and 59 seconds can be set arbitrarily);

15. Attack time display (0-99 seconds can be set arbitrarily);

16. Comply with basketball rules;

17. The last minute shows 1 / 10s;

18. Positive timer: 0-99 hours, 59 minutes and 59 seconds;

19. The game time and Beijing time can be displayed by conversion;

20. Countdown time and attack time can be displayed separately;

21. The attack time is longer than the match time, and the attack time is not displayed;

22. When the game time or attack time reaches 0, the horn will sound for 3 seconds;

23. Field display (1-6);

24. Service right instruction (alternate display);

25. Operation power-off memory function;

26. Exchange site function;

27. The scores of both teams have + 1, + 2, + 3 and - 1 functions;

28. Simple team name input: location code input;

29. Suitable for various competitions.

Basic parameters

Model: yx-9;

LED color: bright red, yellow green;

Specification: 80 × 120 × 7.5cm/piece (a without green Chinese characters);

100 × 180 × 7.5cm/piece (b);

125 × 245 × 7.5cm/piece (c);

Input voltage: AC220V50HZ;

Power consumption: less than 60W / block (a);

Less than 100W / block (b);

Less than 150W / piece (c);

Outer frame material: aluminum alloy profile spray;

Box color: matt black (optional);

Outer packing: wooden case;

Configuration: 1 display screen, 1 cable, 1 console, 1 location code query table, 1 operation manual;

Mobile frame (optional);

Connection mode: wired or wireless (optional).
