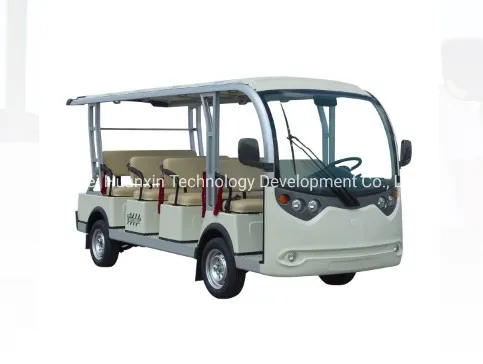

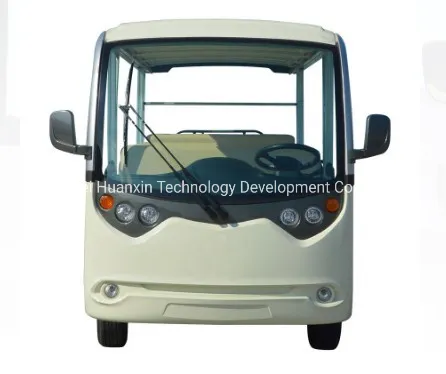

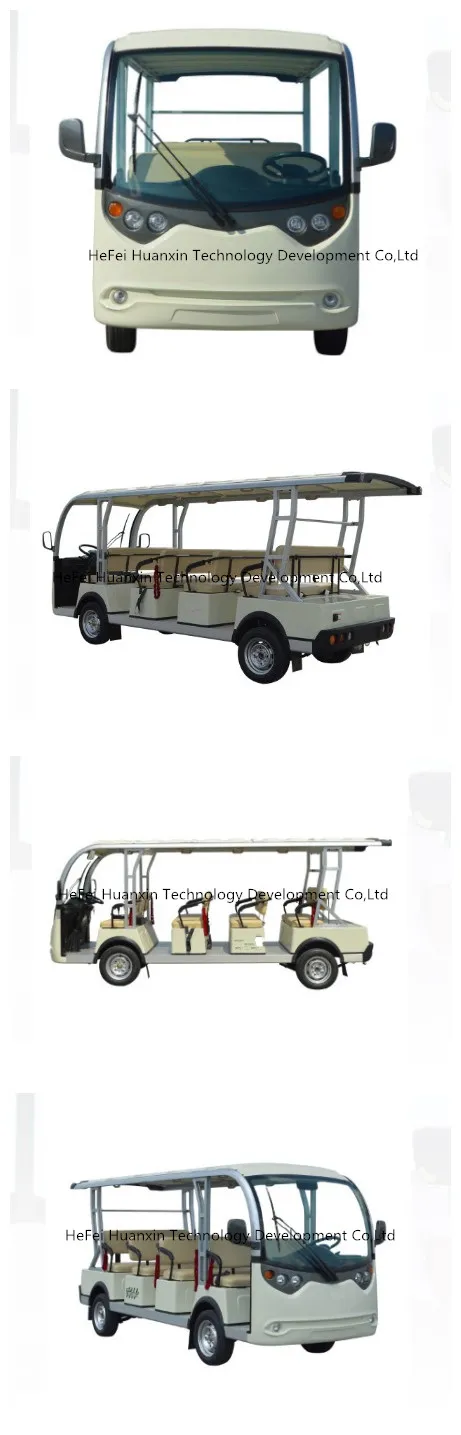

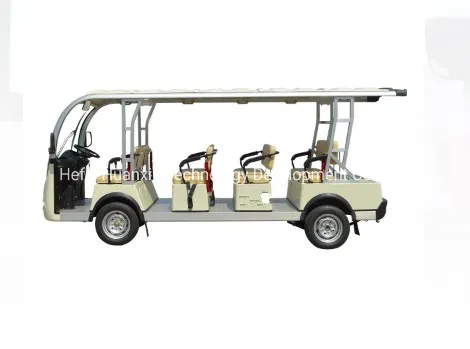

11 Passenger Sightseeing Car School Bus

23 Seats 72v Motor Electric Recreation Bus for Tourist Sightseeing


Product Description




Application

  Specifications


Passenger Capacity    23
Power supply
Battery    6V battery *24pcs
Motor    51V9KW/AC
Controller    72V550A
Charger    2*48V25A full automatic
 high frequency charger
Performance
Max. Speed    25km/h
Max.travelling range    120km
Climbing capactity    15%
Brake Range    <=6
Minmum turning radius    8.5m
Gross Weight     2130kg
Carrying capacity    1750kg
Chassis
Steering    recirculating-ball steering
brakes    Four wheels hydraulic
braking system and independent parking brake
tire    195/70R15C
Ground clearance    100mm
Overall dimension(L*w*h)    5600*2100*2205mm
Qty per container    1pcs/20FT
2pcs/40FT
2pcs/40HQ
Standard parts    Front and rear lights
Rear view mirrors
Speed meter
Wiper
Power assisted steering system
AC system
Optional parts    Loud speaker
CD player
Weather enclosure
Side sunshade curtain
3 points seat belt for driver, Trojan Battery
