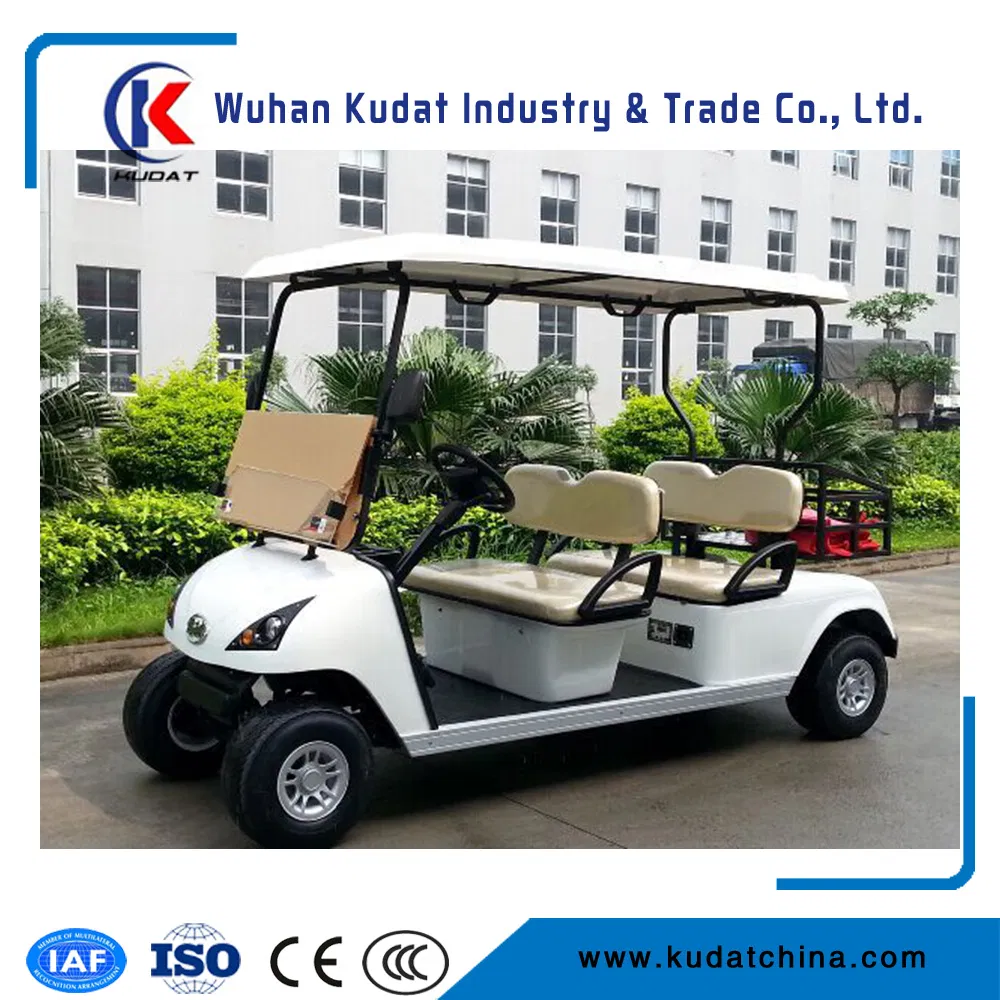

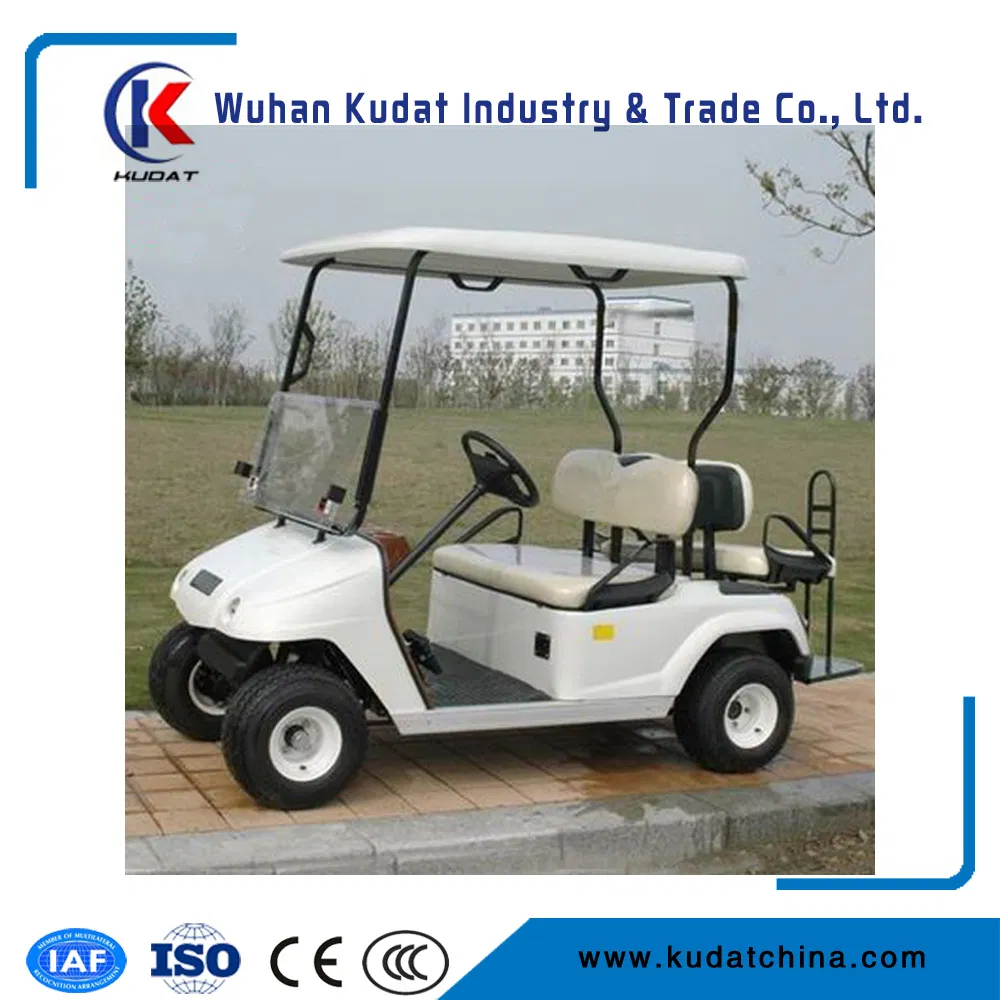

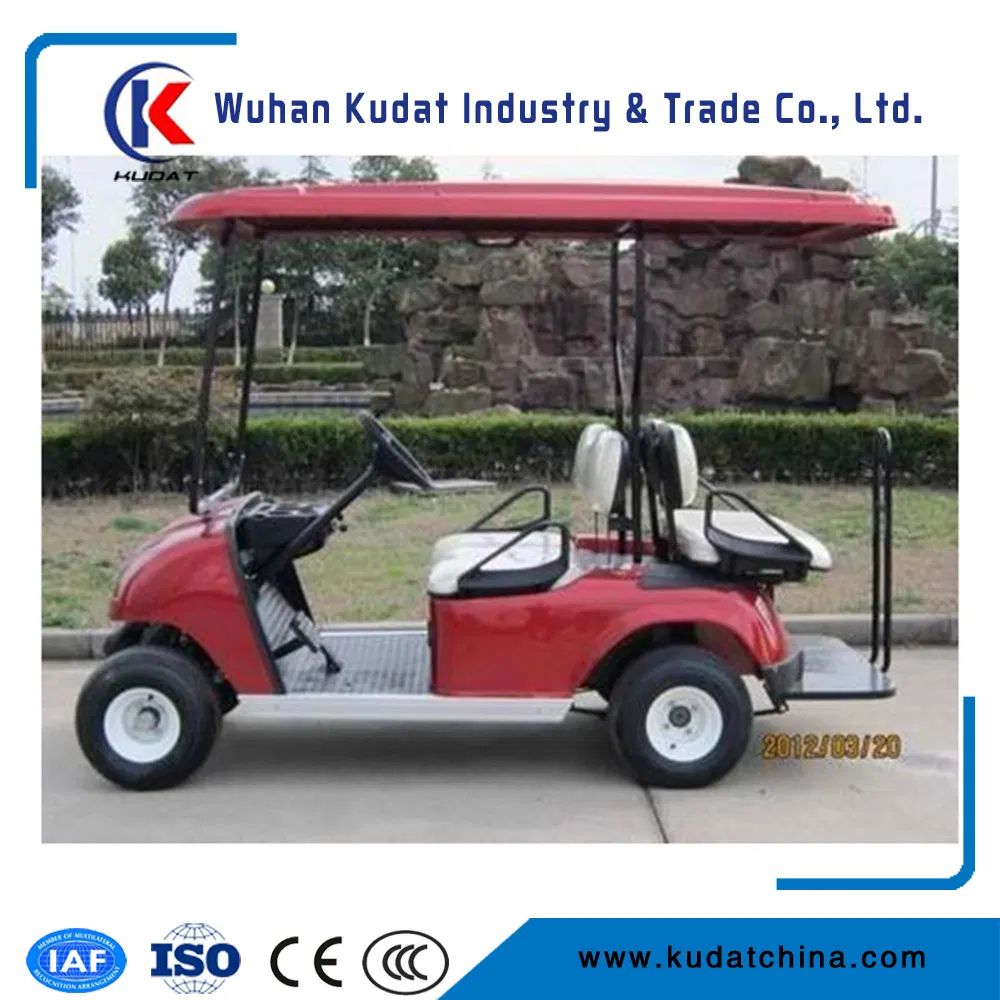

4 Seater Golf Cart
4 seats electric golf car Features & Benefits1. Good aftersale-service, as most parts are manufactured by ourselves;2. Has CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts;3. Import main parts: US battery (From USA) and Delta-Q chargers(From Canada), Cu......
Send Inquiry
Product Description
4 seats electric golf car
Features & Benefits
1. Good aftersale-service, as most parts are manufactured by ourselves;
2. Has CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts;
3. Import main parts: US battery (From USA) and Delta-Q chargers(From Canada), Curtis Controller(From USA);
4. Brake system: Rear wheel Mechanical Drum Brake
5. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Caddycooler; Rear&Side mirror; Different colors and option parts;
6. Good hill climbing ability, the system allows you to customize the car to fit your course;
7. Smart steering system, easy to make forward and backward;
8. Good climbing ablity and can park easily on Hills;
9. Can be easily to be modified to Utility carts.
Main Specification:
Drive Type | 4*2 Rear-wheel drive | |
Rated capacity (including driver) | 4Persons | |
Dimensions(L*W*H) | 3140*1180*1800mm | |
Wheel base | 2420mm | |
Front / rear track | 870/980 | |
Curb weight | 610kgs | |
Maximum load | 480kgs | |
Minimum turning radius | 4m | |
Minimum ground clearance | 100mm | |
Maximum vehicle speed | 24km/h | |
Maximum grade ability | 20% | |
Max drove slope | 20% | |
Braking distance | ≤4.2m | |
Charging time | 8-12H | |
Driving range on one charge | 80km | |
Battery | 6V216AH*6 or 8V170AH*6 | |
Power of Motor | 48V4KW | |
Controller | American Curtis Electronics Controller 1268-5403(48V400A) | |
Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | |
Charger | Full Automatic Efficiency Pulse Charger | |
Rear-Suspension | Leaf Spring With Hydraulic Shock Absorbers | |
Steering | Self Compensating "Rack & Pinion" Steering | |
Brakes | Rear Wheel Mechanical Drum Brake and Regeneration Brake | |
QTY Per Container | 12pcs/40FT | |

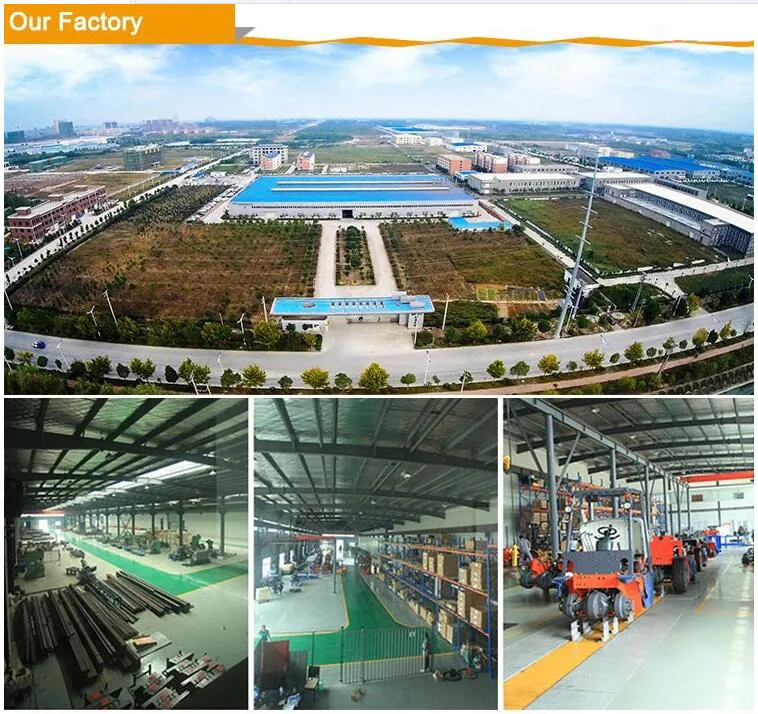

Since 1990 Wuhan Kudat Industry & Trade Co.,Ltd (Kudat) has exported engineering machinery, construction machinery and algricuture machinery to international market. Satisfying customers" stated and implied needs has always been the focus of business policy of Kudat. As a futher stelp to satisfy customers and to give them confidence in our quality & production capabilities, Kudat has adopted ISO9001:2000, the international quality management system. And some of our products have also passed CE and EPA certification.
After got the complaint from the clients, first need got the following information:
1. Photos, video and problems description (as more details as better)
2. Checking the machine's seal No., Engine No. and the date of arrived. Asking the clients supply the working hour
3. If it is in the warranty, supply free parts according the warranty policy; If not, supply necessary technical supply to help client fix the problem and offer paid parts
4. Ask the part No. according the part catalogue when fixed the problem and supply the parts
