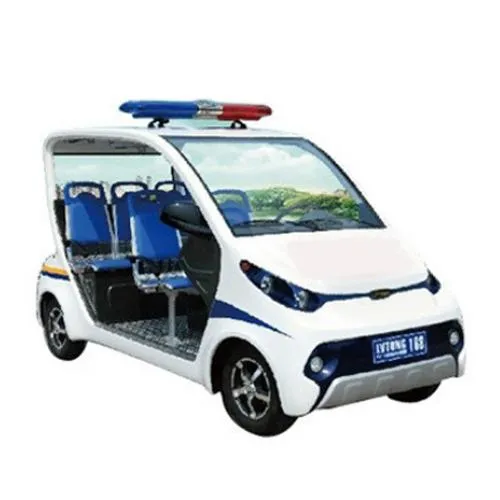

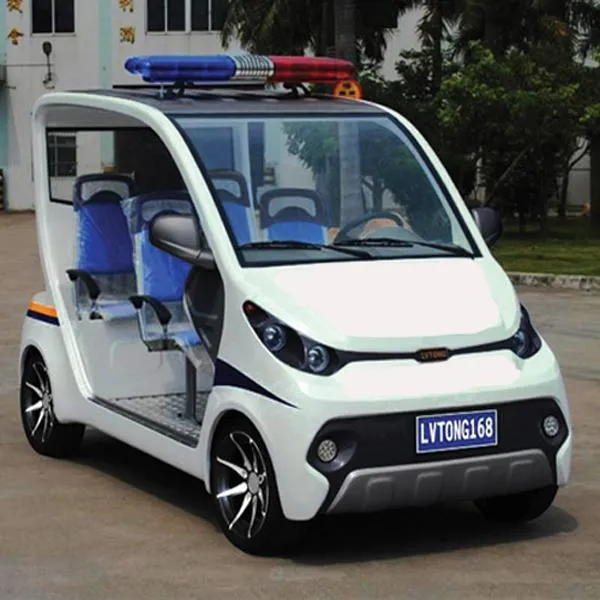

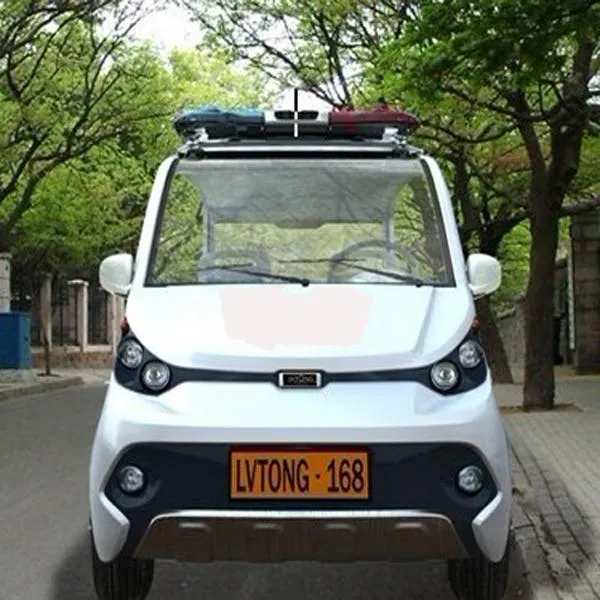

4 Seaters Electric Battery Operated Utility Cart

Product Description

4 Seater Electric Battery Operated Utility Cart Lt-S4. PAC
1. Motor: US ADC brand
2. Battery:Trojan

Electric system	controller		1266/275A
	battery		Trojan battery 6V 8units
	motor		KDS48V/3.7KW motor
	charger		Computer Intelligent input 220V/110V ourput 48V 20A
Charging time			Less than 12 hours discharging rate 80%
Body configuration		Glass	Sandwich glass	Sun Roof	Fiber glass
		seat	leather	Floor	Autiskid rubber floor
		Rear mirror	Handoperated both side	Steering	Dual automotive-style strut and self-adjust rack-and pinion steering
		DC/Light/Signal	48V/12V-300W Front light turning light fog light rear light horn Buzzer
		Body	Fiber glass
		Dash Board	Fiberglass dash board Voltage Indicator 48V Switch Head Lights Switch - Indicators Right/Left key switch Switch - Forward/Reverse
		Braking system	Front disc and rear dram our-wheel hydraulic brake+hand brake
		Front axle and suspension	Independent suspension helical spring +cylinder hydraulic shock absorption
		Rear axle and suspension	Integral type transaxle,gear ratio 12.31:1 semi-independent transaxle spring cylinder hydraulic shock absorption
		Tire diameter	535mm
Parameter		Length width height	3550 1500 1900mm
		Loading passenger	4
		Max speed km/h	30km/h
		Mileage /km	70_90km flat road
		Max climbing ability	15%
		Mini turning radium m	4.7m
		Mini ground clearance	130mm
		Wheel base	Front 1200/back 1230mm
		Braking distance	3.2M
