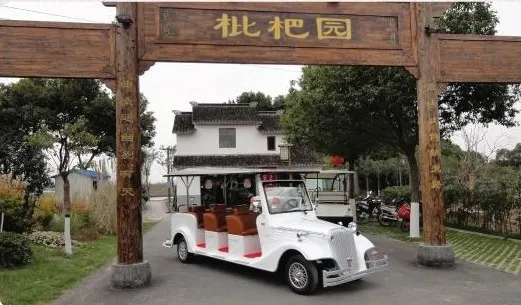

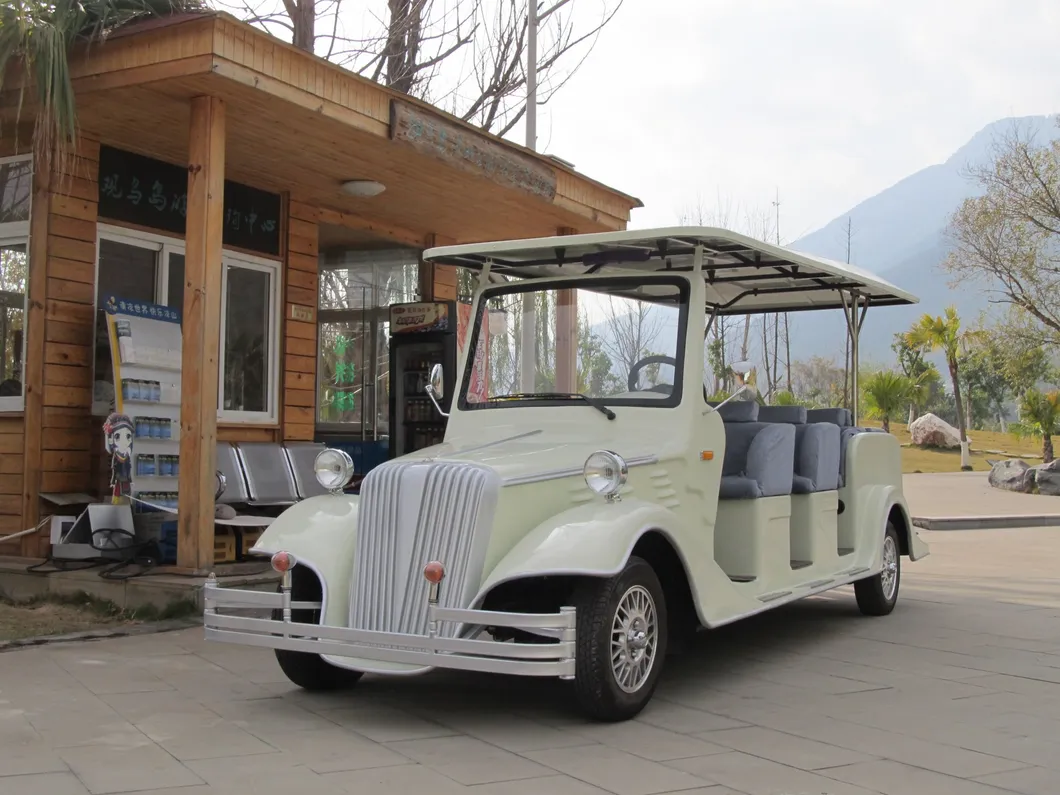

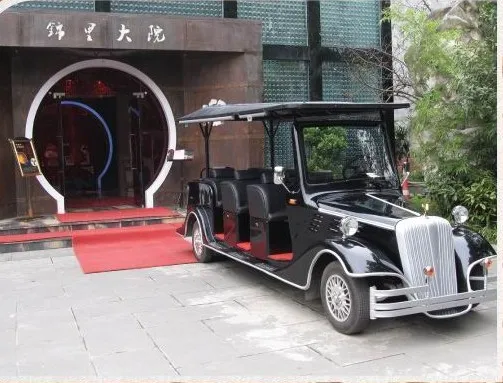

8 Seaters Shuttle Bus Classic Sightseeing Cart

Product Description

Electric vehicle product description

1. Motor: US ADC brand.
2. Controller: US CurTis1266.
3. Battery:Trojan.
4. Stable quality, little noise, anti-fatigue and long durability.
5. There is oil seal which can bear high temperature, therefore it can prevent the transaxle from oil leakage.

Electric system	controller	1268/400A
	battery	trojan battery 6V 8units
	motor	KDS48V/4KW motor
	charger	Computer Intelligent input 220V/110V ourput 48V 20A
Charging time		Less than 12 hours discharging rate 80%
Body configuration	Glass	Sandwich glass	Sun Roof	ABS Vacuum forming
	seat	leather	Floor	Autiskid rubber floor
	Rear mirror	Handoperated,both side	Steering	Dual automotive-style strut and self-adjust rack-and pinion steering
	DC/Light/Signal	48V/12V-300W Front light turning light fog light rear light horn Buzzer
	Body	Fiber glass
	Dash Board	Fiberglass dash board Voltage Indicator 48V Switch Head Lights Switch - Indicators Right/Left key switch Switch - Forward/Reverse
	Braking system	Front disc and rear dram,four-wheel hydraulic brake+hand brake
	Front axle and suspension	Independent suspension helical spring +cylinder hydraulic shock absorption
	Rear axle and suspension	Integral type transaxle,gear ratio 12.31:1,semi-independent transaxle,spring,cylinder hydraulic shock absorption
	Tire diameter	560mm
Parameter	Lengthwidthheight	505014901900mm
	Loading passenger	8
	Max speed km/h	25km/h
	Mileage /km	70_90km flat road
	Max climbing ability	20%
	Mini turning radium m	6.5m
	Mini ground clearance	142mm
	Wheel base	Front 1200/back 1210mm
	Braking distance	3.5m
