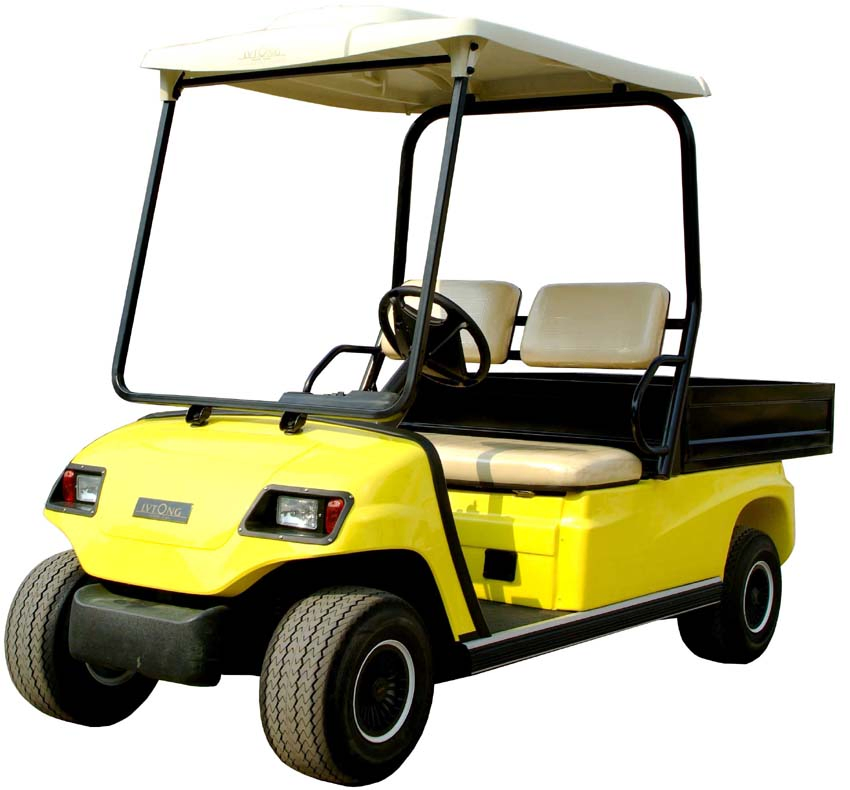

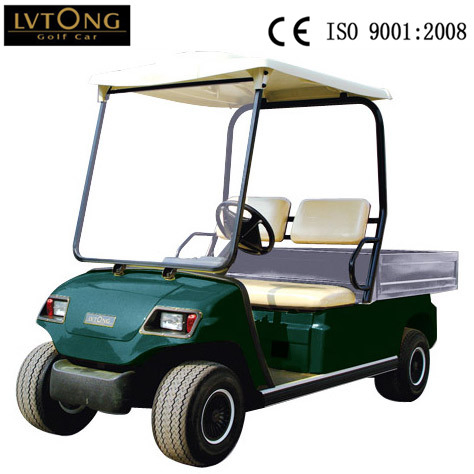

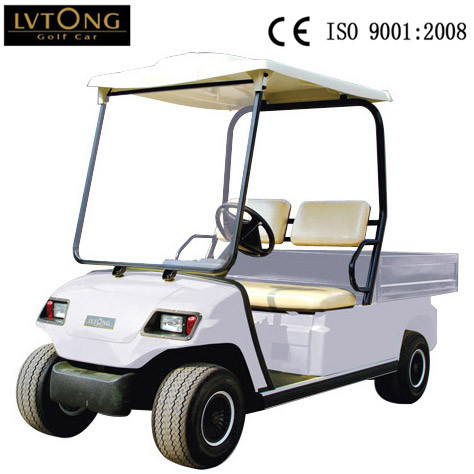

CE-Approved 2 Seaters Electric Car

Product Description

Main Components:
1)ADC Motor
2)Curtis Controller
3)Sunup Transaxle
4)Trojan Battery

Electric system	controller		1266/275A
	battery		trojan battery 8V 6 units
	motor		KDS48V/3.7KW motor
	charger		Computer Intelligent input 220V/110V ourput 48V 20A
Charging time			Less than 12 hours discharging rate 80%
Body configuration		Glass	PC glass	Sun Roof	ABS Vacuum forming
		seat	leather	Floor	Autiskid rubber floor
		Rear mirror	Handoperated, both side	Steering	Dual automotive-style strut and self-adjust rack-and pinion steering
		DC/Light/Signal	48V/12V-300W Front light turning light rear light horn Buzzer
		Body	PP Vacuum forming
		Dash Board	Switch - Indicators Right/Left key switch Switch - Forward/Reverse
		Braking system	Rear drum brake+compound pedal brake
		Front axle and suspension	Independent suspension helical spring +cylinder hydraulic shock absorption
		Rear axle and suspension	Integral type transaxle, gear ratio 12.31: 1, semi-independent transaxle, spring, cylinder hydraulic shock absorption
		Tire diameter	452mm
		Lengthwidthheight	340012001900
Parameter		Container sixe	13651086265mm
		Loading passenger	2
		Max speed km/h	22km/h
		Mileage /km	80_ 90km flat road
		Container truck KG	200KG
		Max climbing ability	25%
		Mini turning radium m	2.9m
		Mini ground clearance	110mm
		Wheel base	Front 930/back 1010mm
		Braking distance	5m
