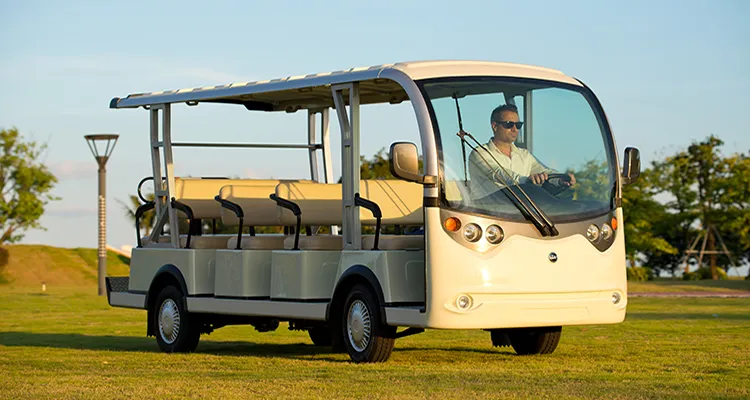

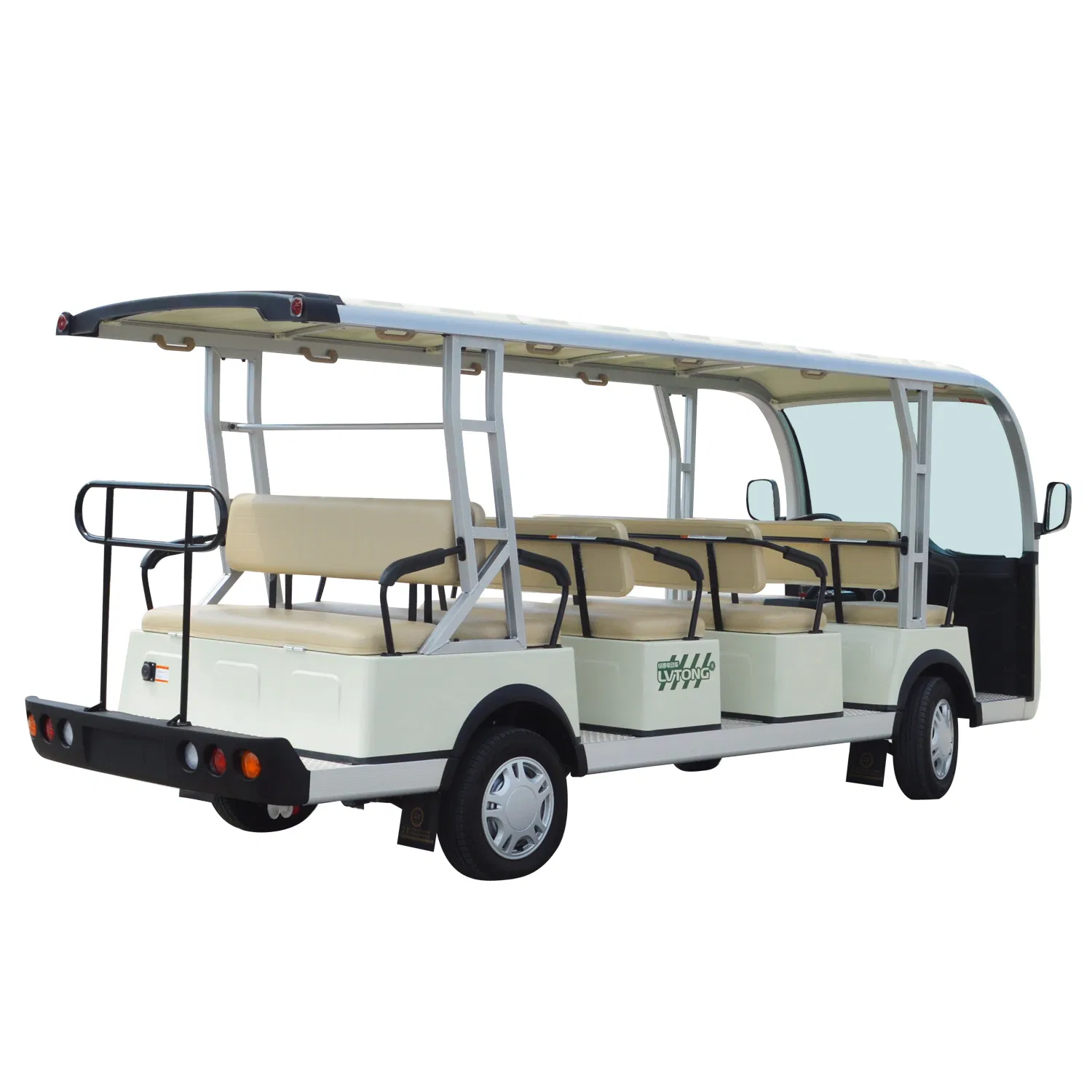

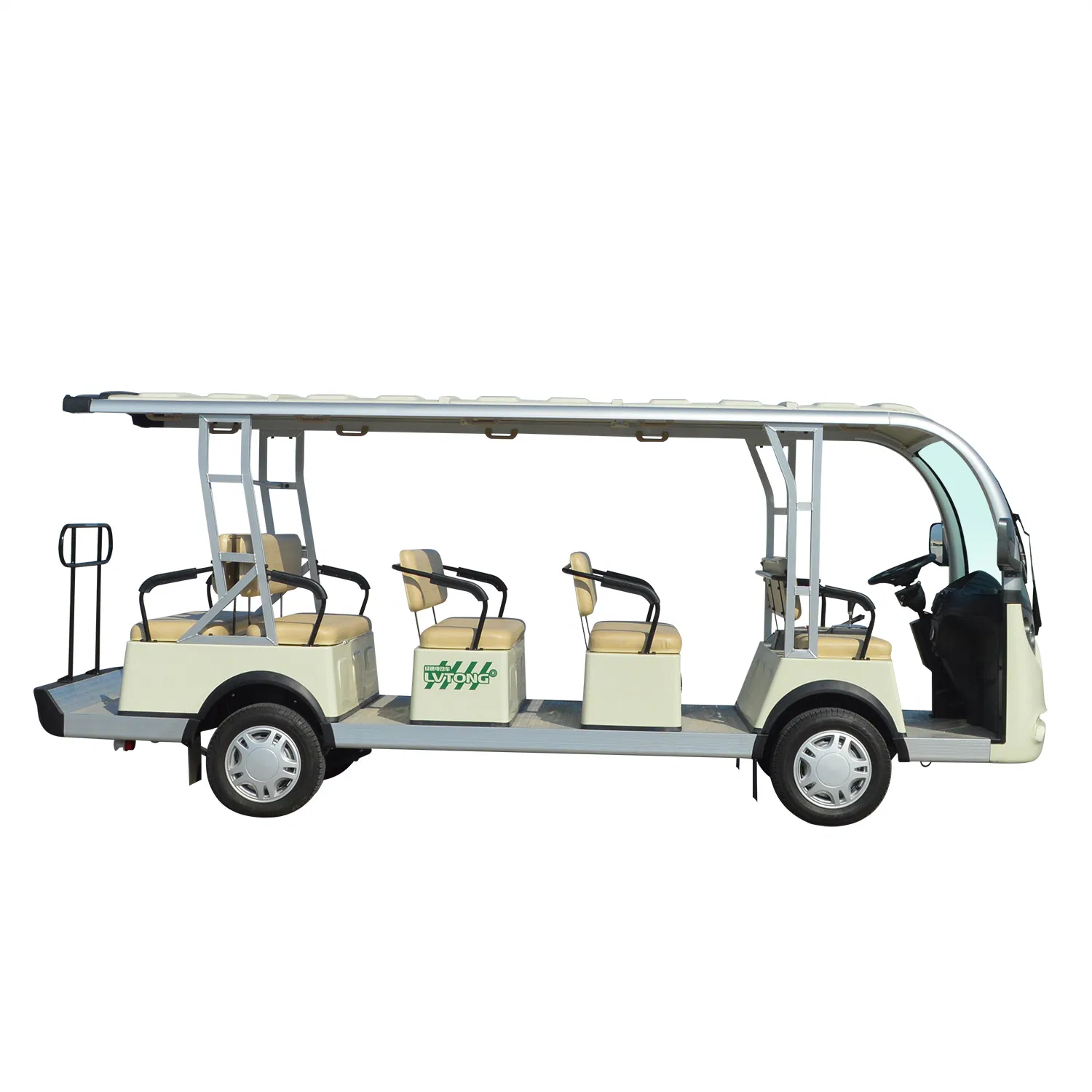

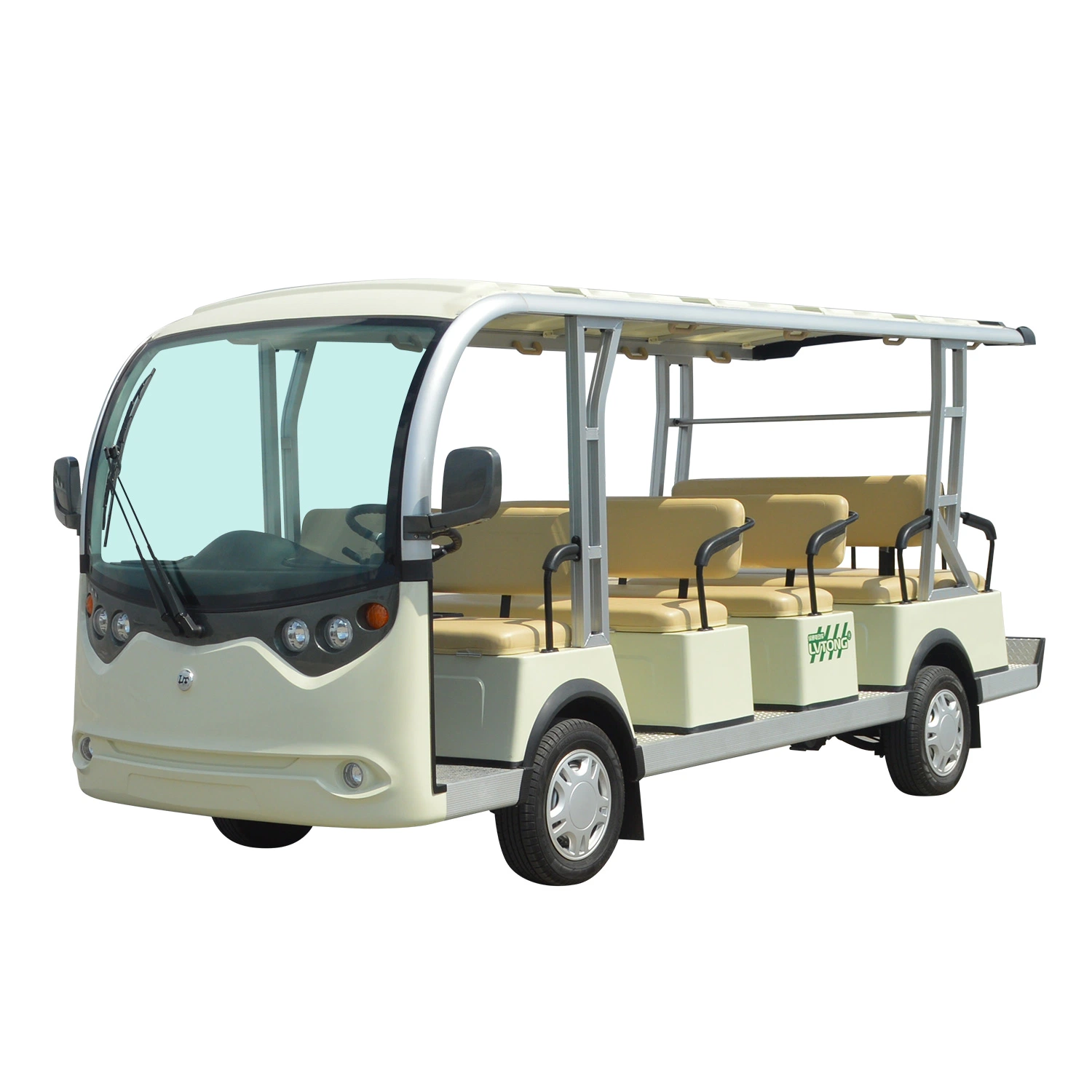

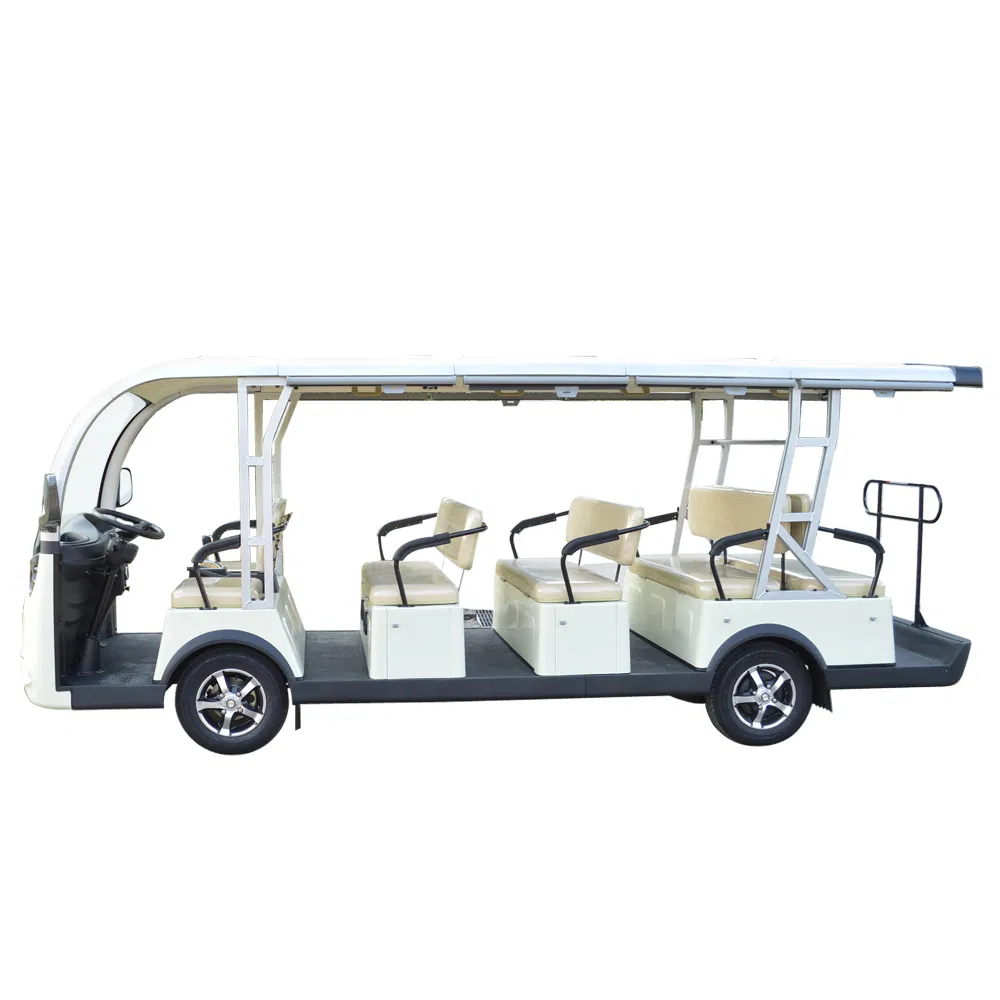

China Manufacture 14 Passenger Electric Sightseeing Bus (LT-S14)

Product Description

Product Description
Price 14 Passenger Electric Car (Lt-S14)

China Manufacture 14 Passenger Electric Sightseeing Bus (LT-S14)

Electric system	controller	1205/400A
	battery	Maintenance Free battery 6V 12units
	motor	72V/7.5KW motor
	charger	Computer Intelligent input 220V/110V ourput 72V 25A
Charging time		Less than 12 hours discharging rate 80%
Body configuration	Glass	Sandwich glass	Sun Roof	Fiber glass
	seat	leather	Floor	Autiskid rubber floor
	Rear mirror	Handoperated, both side	Steering	Dual automotive-style strut and self-adjust rack-and pinion steering
	DC/Light/Signal	72V/12V-400W Front light turning light fog light rear light horn Buzzer
	Body	Fornt bady adopts PP alloy automobile special engineering material The driving baxadopts fiber glass material
	Dash Board	Fiberglass dash board Voltage Indicator 48V Switch Head Lights Switch - Indicators Right/Left key switch Switch - Forward/Reverse
	Braking system	Front disc and rear dram, four-wheel hydraulic brake+hand brake
	Front axle and suspension	Independent suspension helical spring +cylinder hydraulic shock absorption
	Rear axle and suspension	Integral type transaxle, gear ratio 12.49: 1, semi-independent transaxle, spring, cylinder hydraulic shock absorption
	Tire diameter	535mm
Parameter	Lengthwidthheight	496014801960mm
	Loading passenger	14
	Max speed km/h	30km/h
	Mileage /km	80_ 100km flat road
	Max climbing ability	20%
	Mini turning radiumm	5.5m
	Mini ground clearance	180mm
	Wheel base	Front 1180/back 1200mm
	Braking distance	5.5M

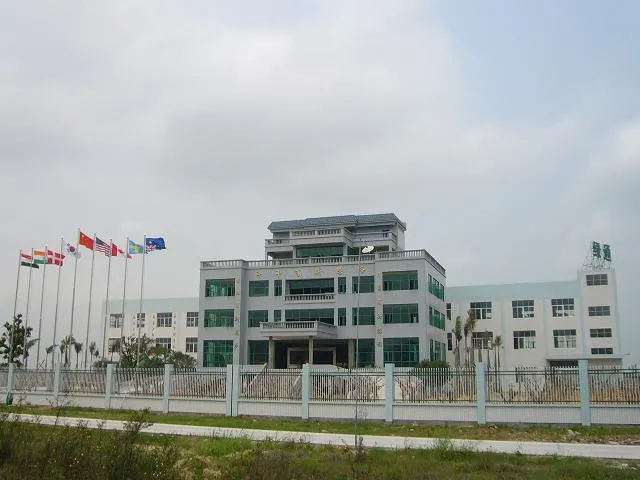

Company Information

1). Founded in 2004, with more than 13 years experience in Producing the golf cart
400 employees including more than 70 engineers;

2). There are more than 400 employees in our factory, including 20 sales and 20 engineers ,specialized services for overseas markets

3). Our products are shipped to more than 80 countries around the world

4). North America ,European, Australia and Asia are the main market.

5). 6 years Made in China gold supplier
