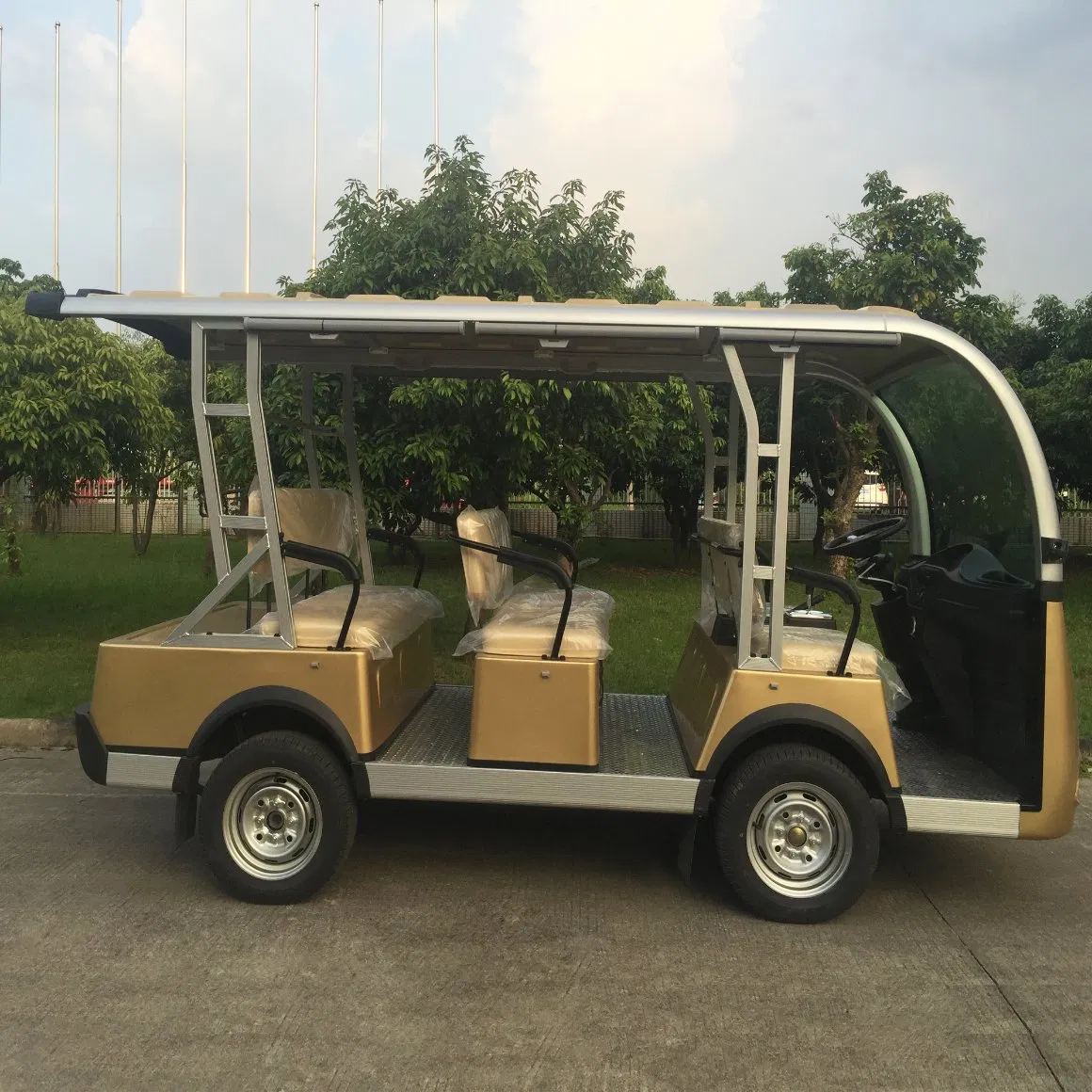

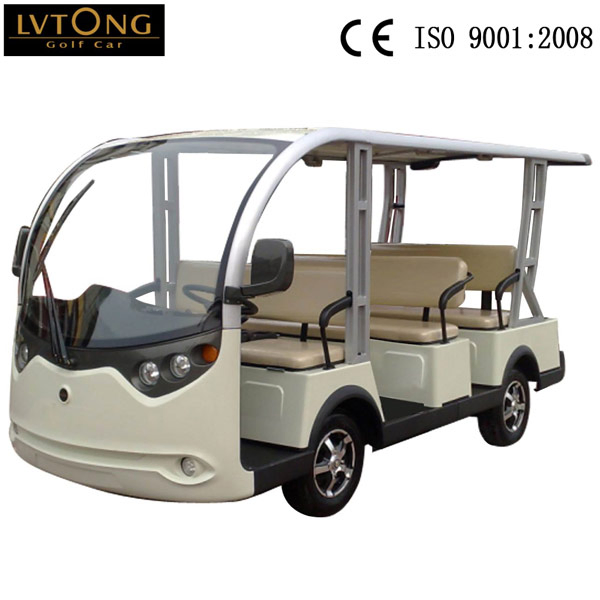

Electric Sightseeing Mini Bus 8 Seats

Product Description

Electric vehicle product description

1. Motor: US ADC brand
2. Controller: US CurTis1266
3. Battery:Trojan
4. Stable quality, little noise, anti-fatigue and long durability;
5. There is oil seal which can bear high temperature, therefore it can prevent the transaxle from oil leakage.

Electric system	controller		1268/400A
	battery		trojan battery 6V,8units
	motor		48V/4KW motor
	charger		Computer Intelligent,input 220V/110V,ourput 48V,20A
Charging time			Less than 12 hours(discharging rate 80%)
Body configuration		Glass	Sandwich glass	Sun Roof	ABS Vacuum forming
		seat	leather	Floor	Autiskid rubber floor
		Rear mirror	Handoperated,both side	Steering	Dual automotive-style strut and self-adjust rack-and pinion steering
		DC/Light/Signal	48V/12V-300W Front light,turning light,fog light, rear light,horn,Buzzer
		Body	Fornt bady adopts"PP"alloy automobile special engineering material The driving baxadopts fiber glass material
		Dash Board	Fiberglass dash board,Voltage Indicator 48V,Switch Head Lights,Switch - Indicators Right/Left,key switch,Switch - Forward/Reverse.
		Braking system	Front disc and rear dram,four-wheel hydraulic brake+hand brake
		Front axle and suspension	Independent suspension , helical spring +cylinder hydraulic shock absorption
		Rear axle and suspension	Integral type transaxle,gear ratio 12.31:1,semi-independent transaxle,spring,cylinder hydraulic shock absorption
		Tire diameter	535mm
