Factory Sales Fast Charging 4 Seater Golf Cart with Lithium Battery
HDK Golf Club Car Red Utility Vehicle (DEL3022G2Z, 2+2-Seater)Product Model: DEL3022G2ZPower Source: ElectricElectrical System: 48-volt or 36-voltHorsepower: 4HP/3kwBatteries: US/Trojan batteries(options)Charger: US on-board chargerController: US controllerParameter ListItemUnit ItemUnit Boundary Di......
Send Inquiry
Product Description

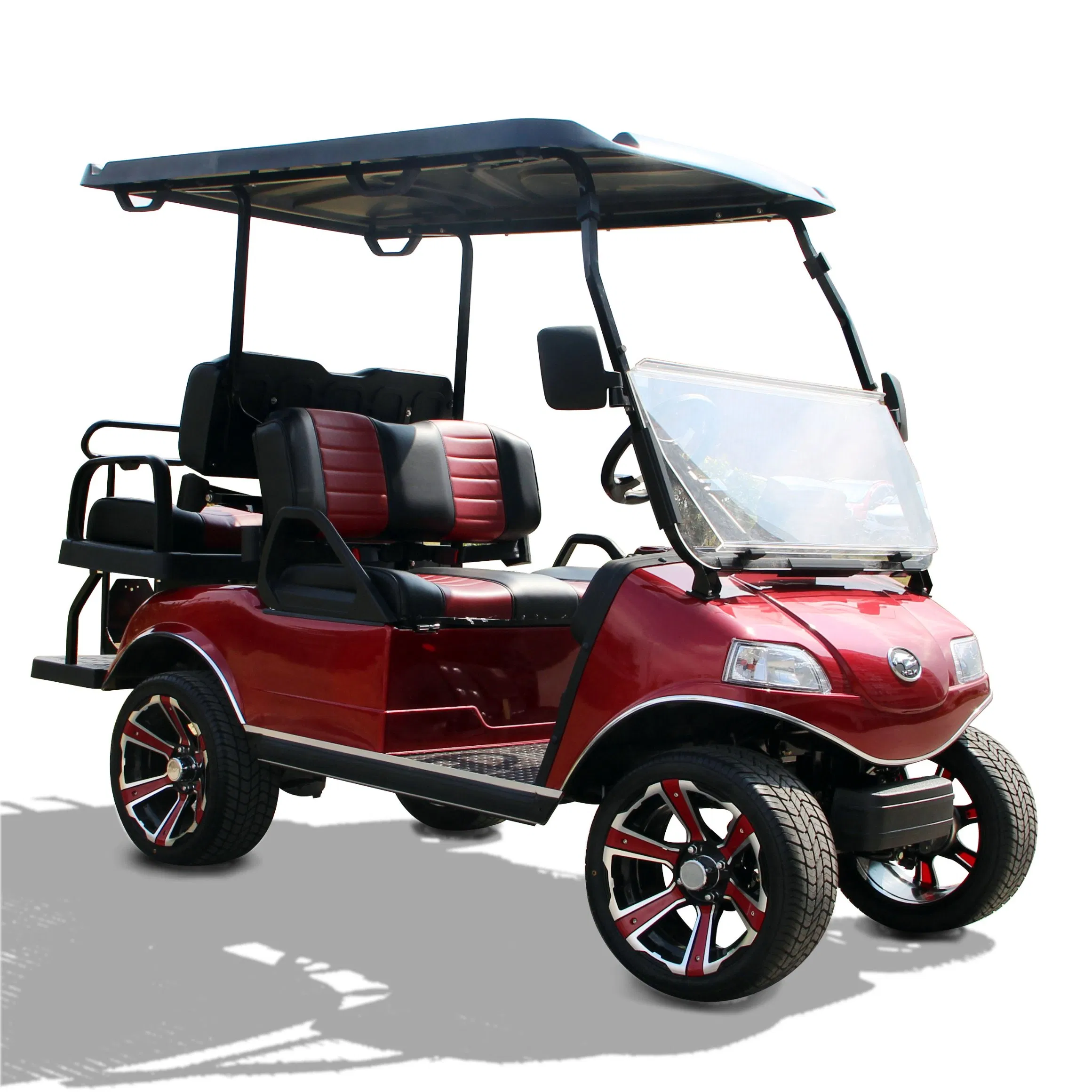

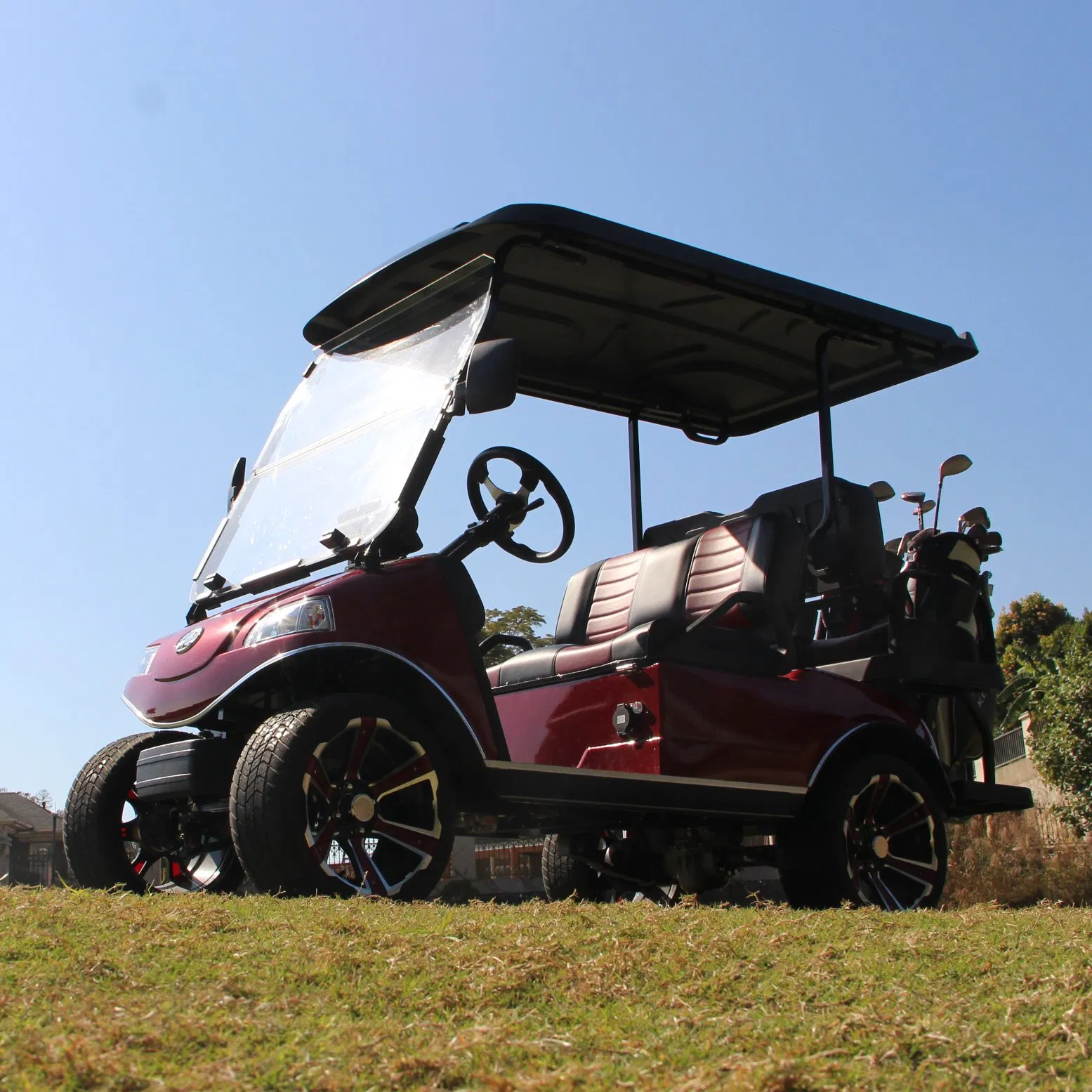

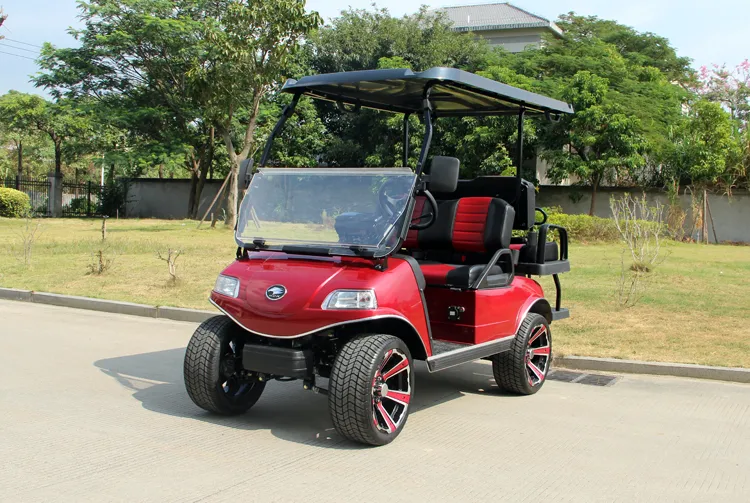

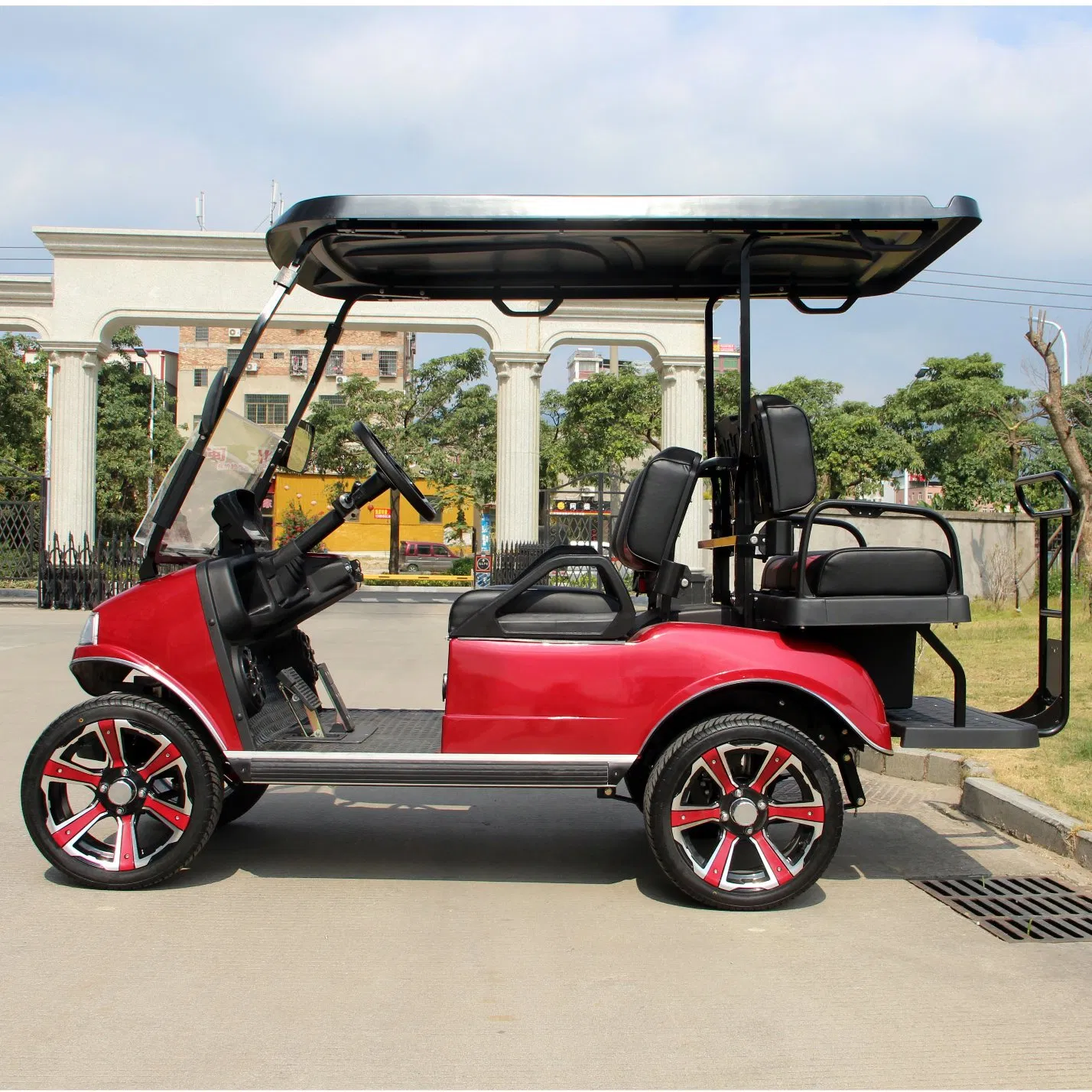

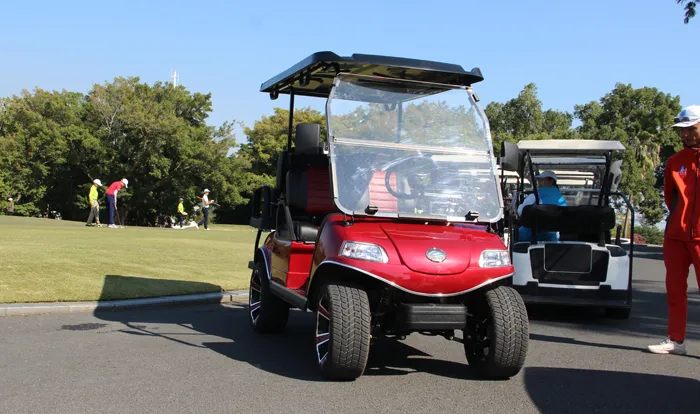

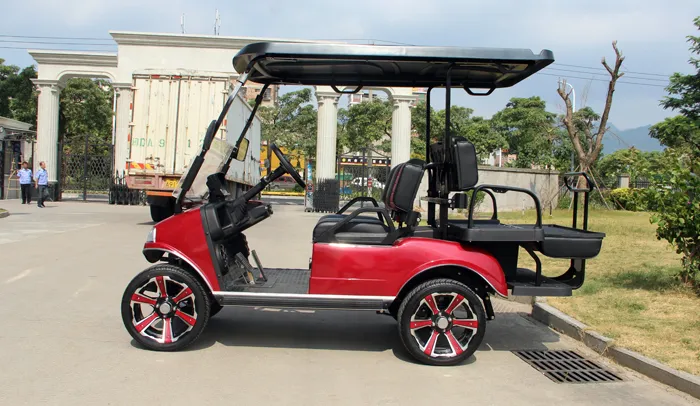

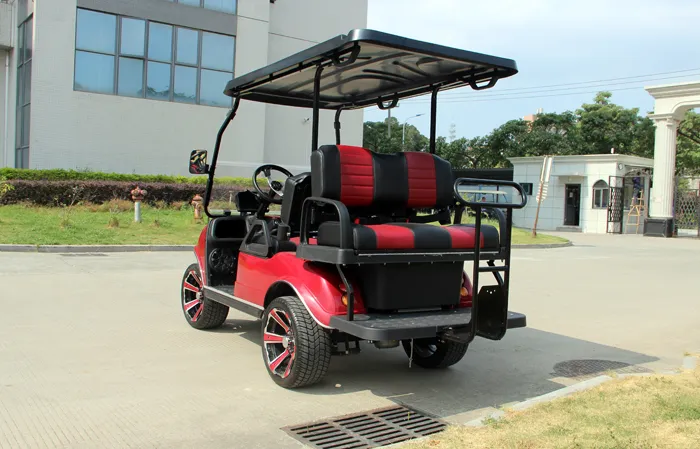

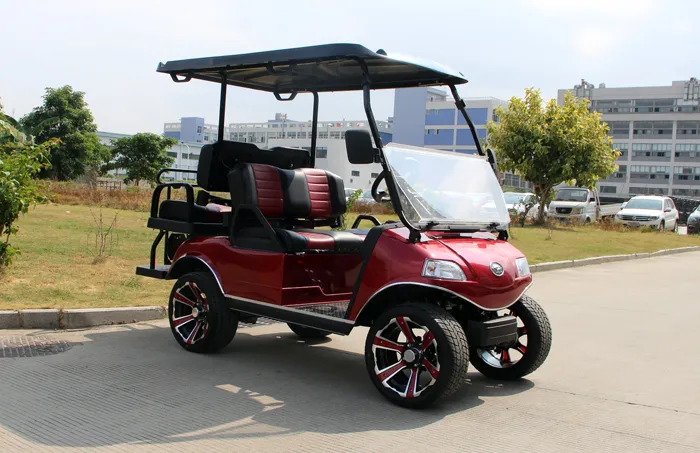

HDK Golf Club Car Red Utility Vehicle (DEL3022G2Z, 2+2-Seater)
Product Model: DEL3022G2Z
Power Source: Electric
Electrical System: 48-volt or 36-volt
Horsepower: 4HP/3kw
Batteries: US/Trojan batteries(options)
Charger: US on-board charger
Controller: US controller
Parameter List
Configurations
Options:
-Optional color: White, yellow, green, red, black, gold, navy blue, metallic green
-LSV/NEV package
-Hybrid generator
-Speedometer
-Seat belts
-Enclosure
Product Model: DEL3022G2Z
Power Source: Electric
Electrical System: 48-volt or 36-volt
Horsepower: 4HP/3kw
Batteries: US/Trojan batteries(options)
Charger: US on-board charger
Controller: US controller
Parameter List
| Item | Unit | Item | Unit | ||
| Boundary Dimension(l*w*h) | mm | 2550×1130×1980 | |||
| Wheel Base | mm | 1630 | Passengers Capacity | 4 | |
| Wheel Track(Front & Back) | mm | 880/980 | Parking Capacity(Empty) | % | 28 |
| Braking Length(Full Load,20km/h) | m | ≤3.5 | Maximum Speed(Full Load) | Km/h | 35 |
| Minimum Turning Radius | m | 3 | Maximum Gradeability(Full Load) | % | 25 |
| Minimum Ground Clearance(Full Load) | mm | 110 | Rated Power | kw | 3 |
| Charging Time | h | 8-10 | Driving Range/A Charging Time | km | ≥60 |
| Curb Weight | kg | 520 | Maximum Total Mass | kg | 720 |
Configurations
| Model Configuration | DEL3022G2Z | ||||||||
| Electric System | Controller | Curtis1266 | |||||||
| Battery | 8V Domestic Maintenance-free Battery | ||||||||
| Motor | 4KW | ||||||||
| Charger | HDK Car Charger | ||||||||
| Configuration | Body | Entirety Injection Molding | |||||||
| Front Windshield | Folded Windshield | ||||||||
| Roof | Injection Molding With Handle | ||||||||
| Chair | Sponge+ Leather +Plywood | ||||||||
| Floor | Epoxy Board+ Entirety Rubber Abrasive Floor | ||||||||
| Instrument Desk | Entirety Injection Molding Instrument Desk | ||||||||
| Rearview Mirror | Outside Rearview Mirror | ||||||||
| Lamp & Signal | Headlamp + LED Signal Lamp | ||||||||
| Voice Box | No | ||||||||
| Windscreen Wiper | NO [DOT With Wiper] | ||||||||
| Speedometer | Yes | ||||||||
| Color | Red | Blue | Black | White | Gold | Green | Yellow | Camouflage | |
| Rear Axle | Domestic Dedicated Rear Axle Differential Ratio :10.25:1 | ||||||||
| Frame | Entirety Weld Steel Structural Framework, Hot-Dip Galvanizing | ||||||||
| Tyre | 205/50-10(18×8-10) 4PR | ||||||||
| Rim | 10×7 Aluminum Rim | ||||||||
| Braking System | Rear Wheel Mechanical Drum Brake + Foot Parking Brake | ||||||||
| Suspension System | Independent Front Suspension + Rear Leaf Spring + Cartridge Hydraulic Shock Absorber | ||||||||
| Steering System | Rack And Pinion Steering + Machine Direction | ||||||||
| Speed Control System | Rear Axle Drive, CVT | ||||||||
Options:
-Optional color: White, yellow, green, red, black, gold, navy blue, metallic green
-LSV/NEV package
-Hybrid generator
-Speedometer
-Seat belts
-Enclosure
