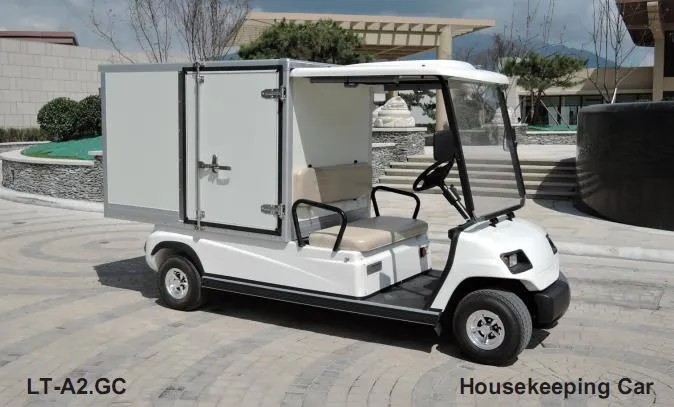

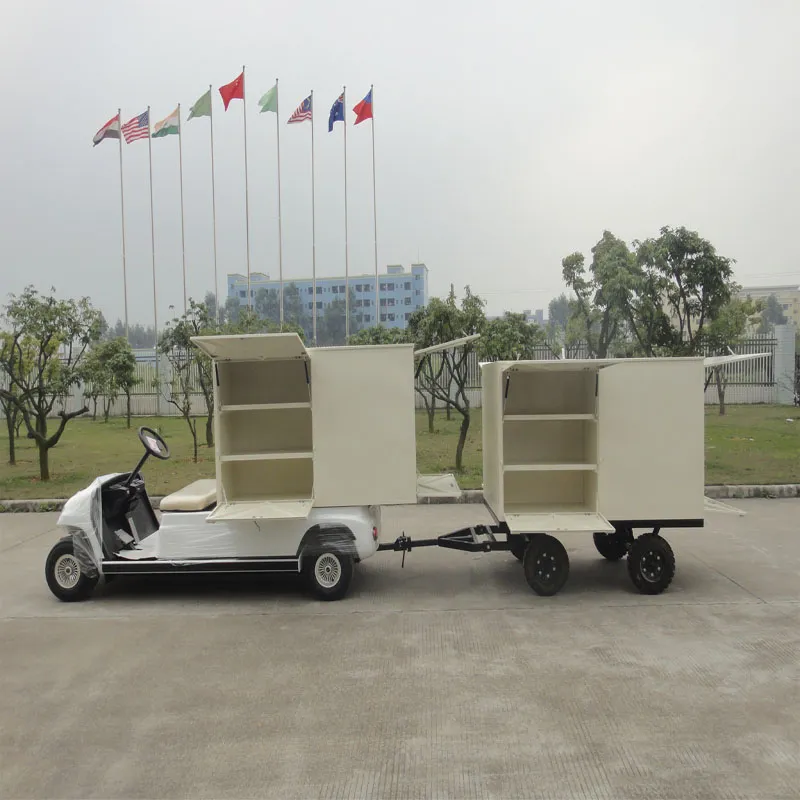

High Performance Electric Housekeeping Cart

Product Description

Electric vehicle product description

1. Motor: US ADC brand
2. Battery: Trojan
3. Controller: US CurTis1266
4. Stable quality, little noise, anti-fatigue and long durability
5. There is oil seal which can bear high temperature, therefore it can prevent the transaxle from oil leakage
High Performance Electric Housekeeping Cart

High Performance Electric Housekeeping Cart

Electric system	controller	1266/275A
	battery	trojan battery 8V, 6 units
	motor	KDS48V/3.7KW motor
	charger	Computer Intelligent\input 220V/110V\ourput 48V\20A
Charging time	Less than 12 hours(discharging rate 80%)

Body configuration	Glass	PC glass	Sun Roof	ABS Vacuum forming

	seat	leather	Floor	Autiskid rubber floor
	Rear mirror	Handoperated, both side	Steering	Dual automotive-style strut and self-adjust rack-and pinion steering
	DC/Light/Signal	48V/12V-300W Front light\turning light\rear light\horn\Buzzer
	Body	PP Vacuum forming
	Dash Board	PP Vacuum forming, Voltage Indicator 48V\Switch Head Lights\Switch - Indicators Right/Left\key switch\Switch - Forward/Reverse.
	Braking system	Rear drum brake+compound pedal brake
	Front axle and suspension	Independent suspension, helical spring +cylinder hydraulic shock absorption
	Rear axle and suspension	Integral type transaxle, gear ratio 12.31: 1, semi-independent transaxle, spring, cylinder hydraulic shock absorption
	Tire diameter	452mm

Parameter

	Lengthwidthheight	360012001900mm
	Loading passenger	2
	Max speed km/h	22km/h
	Mileage
/km	70_90km(flat road)
	Max climbing ability	25%
	Mini turning radium(m)	5m
	Mini ground clearance	110mm
	Wheel base	Front 930/back 1010mm
	Braking distance	4.5m
