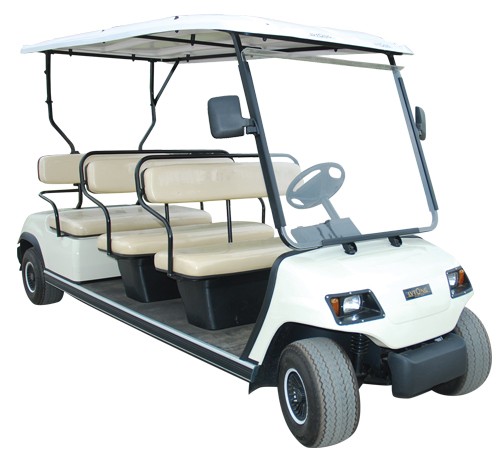

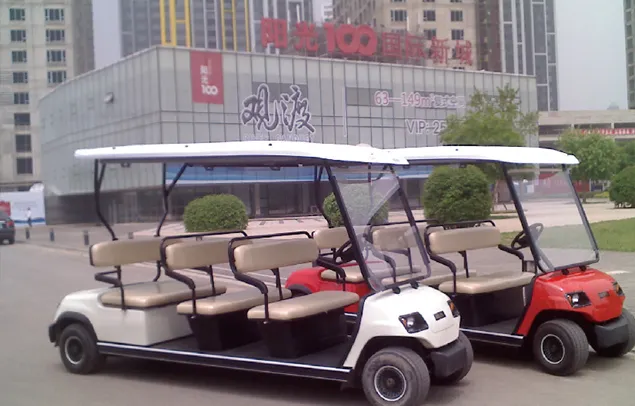

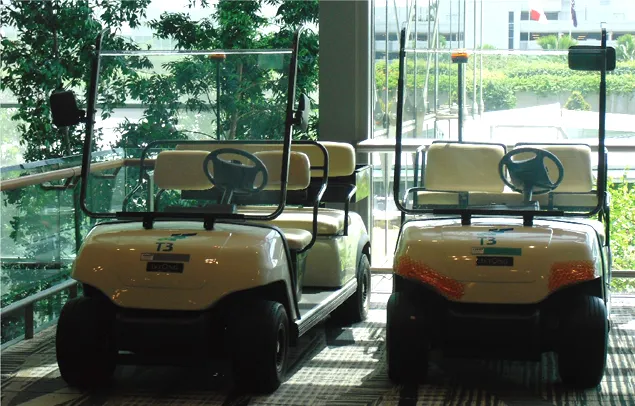

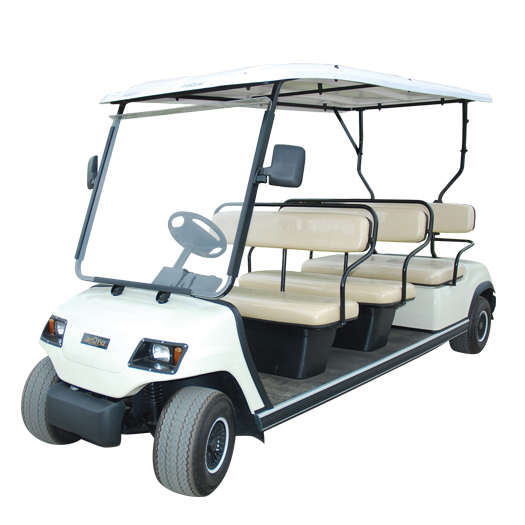

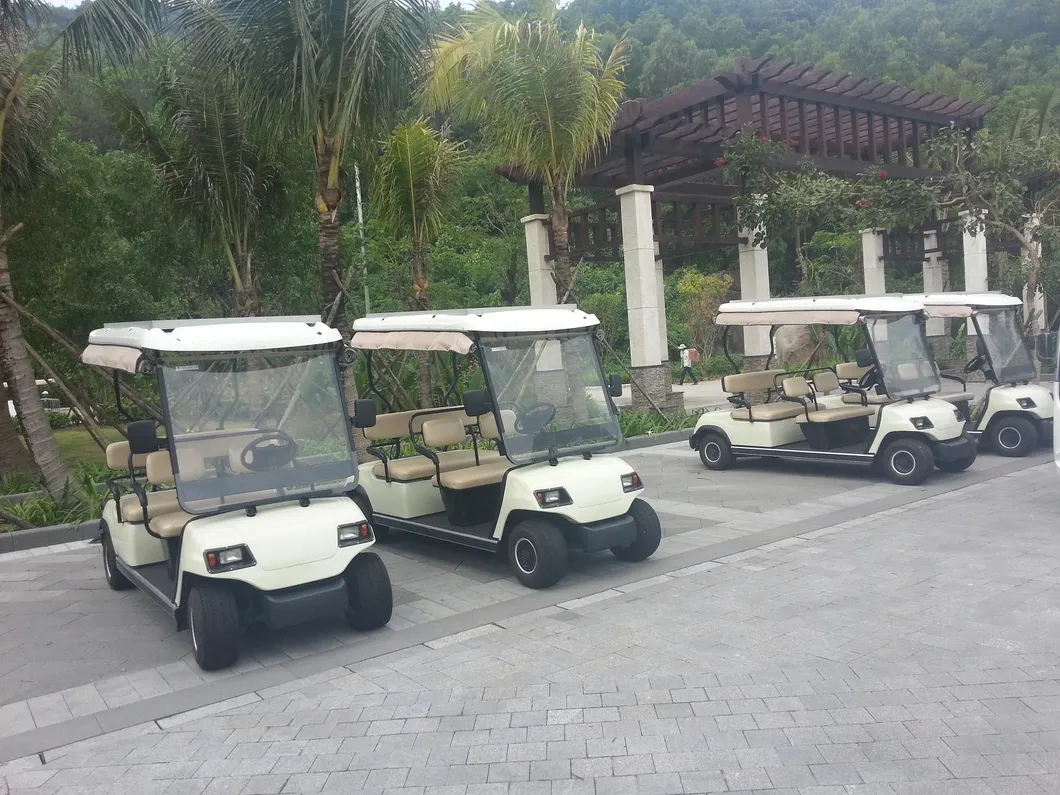

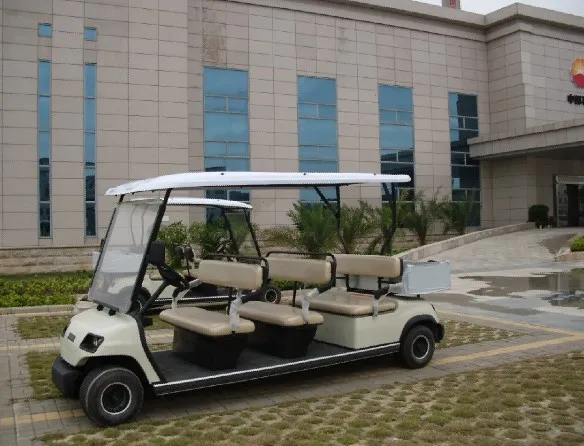

                            White 8 Seaters Electric Sightseeing Car
                            • White 8 Seaters Electric Sightseeing CarWhite 8 Seaters Electric Sightseeing Car
                            • White 8 Seaters Electric Sightseeing CarWhite 8 Seaters Electric Sightseeing Car
                            • White 8 Seaters Electric Sightseeing CarWhite 8 Seaters Electric Sightseeing Car
                            • White 8 Seaters Electric Sightseeing CarWhite 8 Seaters Electric Sightseeing Car

                            White 8 Seaters Electric Sightseeing Car

                            8 Seater White Electric Sightseeing Car (LT-A8)Main Components:1 Motor: ADC1.1 Originally imported from USA1.2 3.7KW output makes strong torque and stable performance1.3 Temperature resistant, excellant sealing propertyElectric vehicle product description1. Motor: US ADC brand2. Controller: US CurTi......

                            Send Inquiry

                            Product Description

                            8 Seater White Electric Sightseeing Car (LT-A8)

                            Main Components:
                            1 Motor: ADC

                            1.1 Originally imported from USA
                            1.2 3.7KW output makes strong torque and stable performance
                            1.3 Temperature resistant, excellant sealing property

                            Electric vehicle product description

                            1. Motor: US ADC brand
                            2. Controller: US CurTis1266
                            3. Battery: Trojan
                            4. Stable quality, little noise, anti-fatigue and long durability;
                            5. There is oil seal which can bear high temperature, therefore it can prevent the transaxle from oil leakage.

                            White 8 Seaters Electric Sightseeing Car
                            White 8 Seaters Electric Sightseeing CarWhite 8 Seaters Electric Sightseeing CarWhite 8 Seaters Electric Sightseeing Car

                            Electric system
                            controller1266/275A
                            batterytrojan battery 8V 6 units
                            motorKDS48V/3.7KW motor
                            chargerComputer Intelligent input 220V/110V ourput 48V 20A
                            Charging timeLess than 12 hours discharging rate 80%







                            Body configuration
                            GlassPC glassSun RoofABS  Vacuum forming

                            seatleatherFloorAutiskid rubber floor
                            Rear mirrorHandoperated, both sideSteeringDual automotive-style strut and self-adjust rack-and pinion steering
                            DC/Light/Signal48V/12V-300W    Front light turning light rear light horn Buzzer
                            BodyPP  Vacuum forming
                            Dash BoardPP  Vacuum forming Voltage Indicator 48V Switch Head Lights Switch - Indicators Right/Left key switchSwitch - Forward/Reverse
                            Braking systemRear drum brake+compound pedal brake
                            Front axle and suspensionIndependent suspension helical spring +cylinder hydraulic shock absorption
                            Rear axle and suspensionIntegral type transaxle, gear ratio 12.31: 1, semi-independent transaxle, spring, cylinder hydraulic shock absorption
                            Tire diameter452mm

                            Parameter


                            Length*width*height3980*1200*1900mm
                            Loading passenger8
                            Max speed km/h22km/h
                            Mileage
                            /km
                            70_ 80km flat road
                            Max climbing ability15%
                            Mini turning radium m5m
                            Mini ground clearance110mm
                            Wheel baseFront 930/back 1010mm
                            Braking distance5.5M
