Product Description

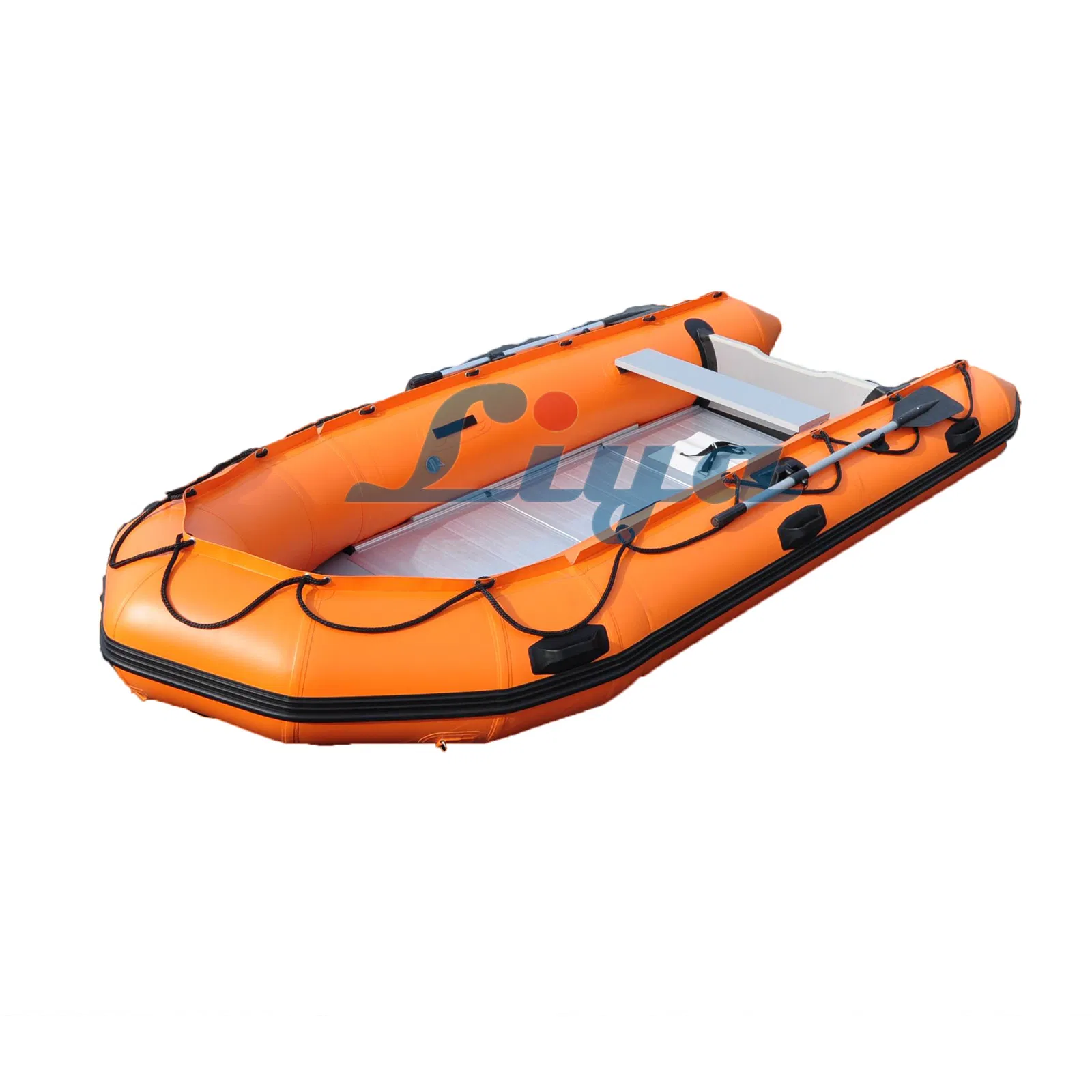

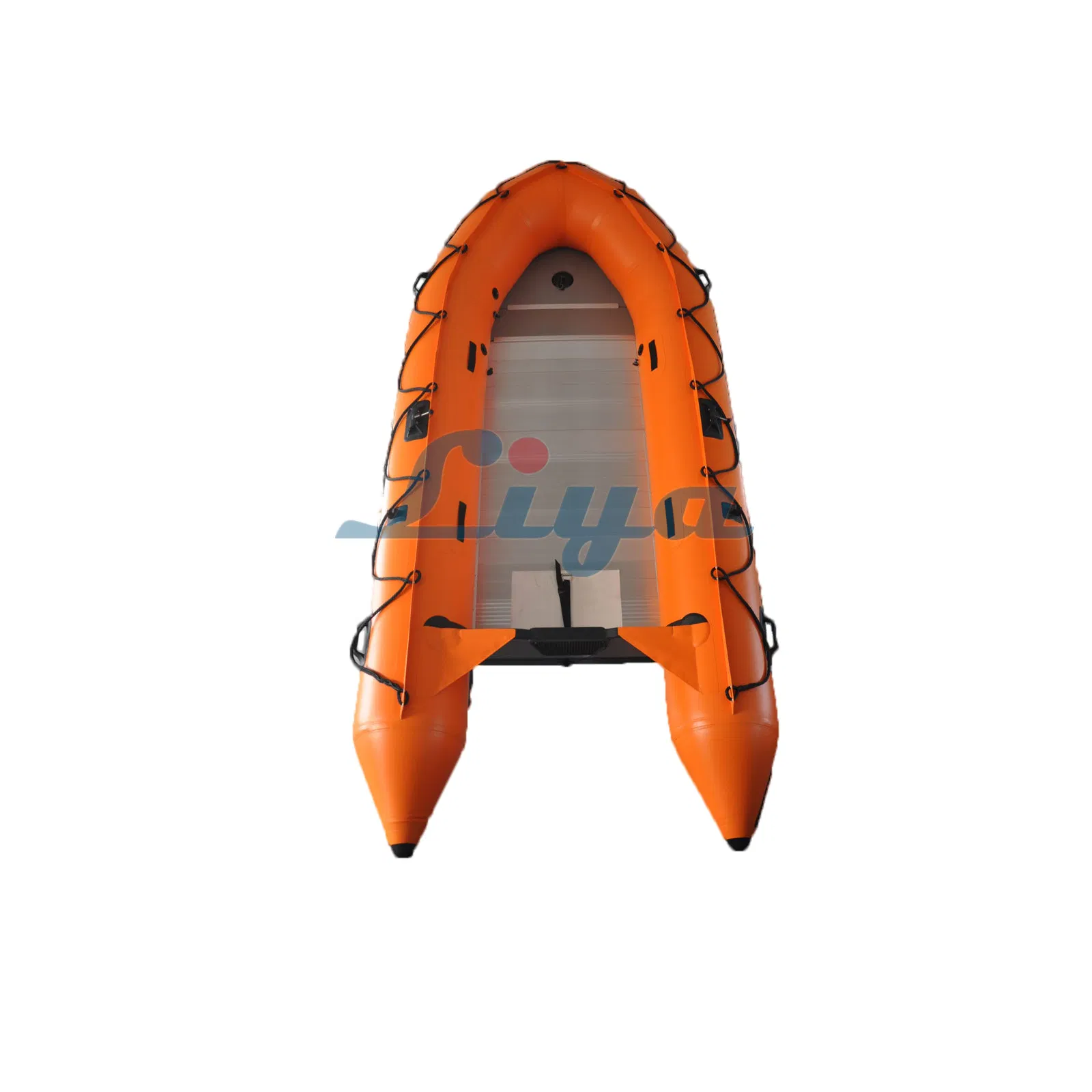

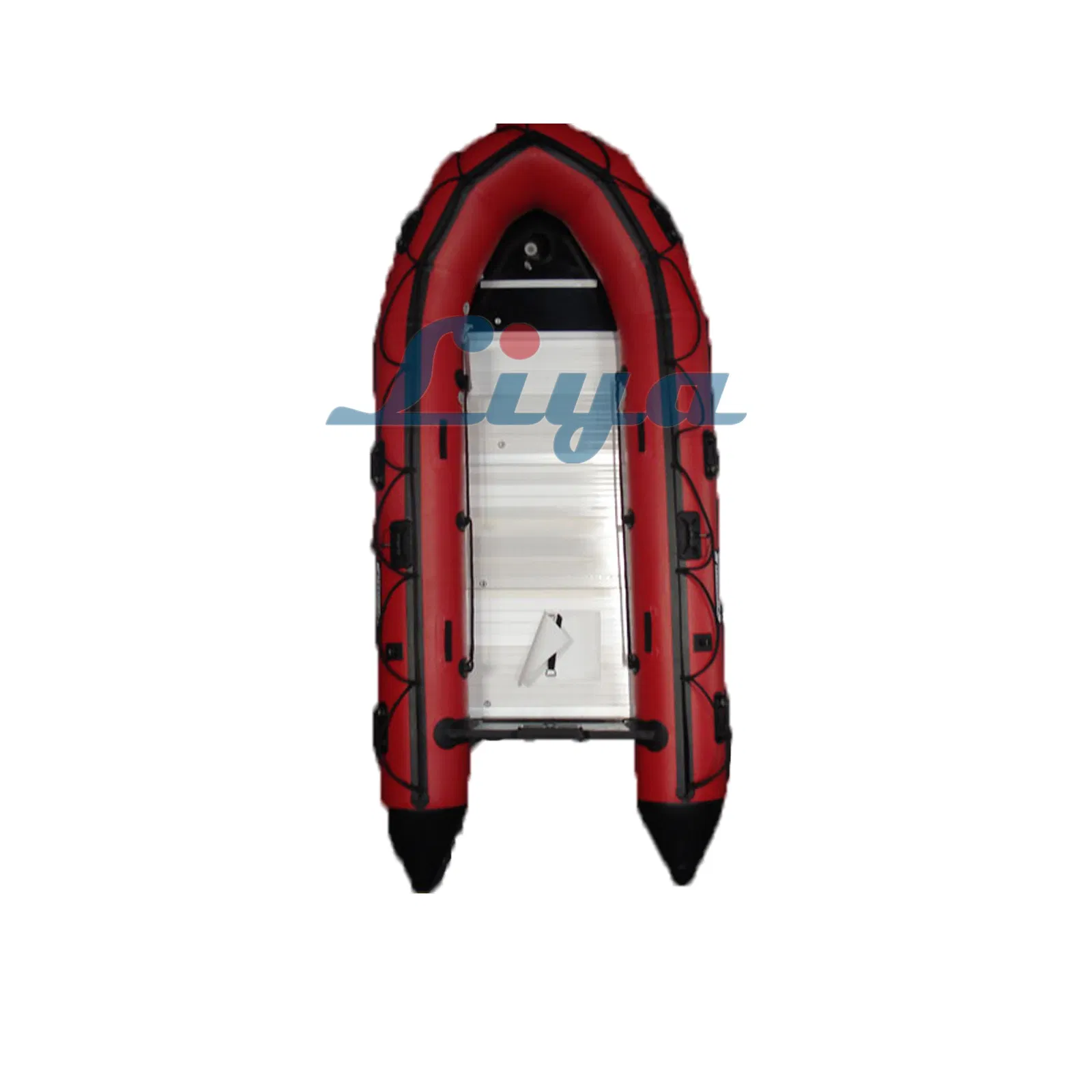

Liya Inflatable Boat Foldable Ub Boat 2.0-6.5m
Product description:
| Model | UB200 | UB230 | UB250 | UB270 | UB300 | UB330 | UB360 |
| Over Length (CM) | 200 | 230 | 250 | 270 | 300 | 330 | 360 |
| Over Width (CM) | 126 | 126 | 126 | 150 | 150 | 151 | 170 |
| Inside length(CM) | 130 | 154 | 164 | 175 | 198 | 228 | 252 |
| Inside Width(CM) | 61 | 61 | 61 | 68 | 68 | 68 | 80 |
| Tube Diam. (CM) | 34 | 36 | 36 | 40 | 40 | 40 | 45 |
| Air Chamber | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 |
| Max engine (HP) | 3 | 4 | 5 | 8 | 10 | 15 | 20 |
| Transom Height(cm) | 37±1 | 37±1 | 37±1 | 38±1 | 38±1 | 38±1 | 38±1 |
| Max Persons | 2 | 2 | 3 | 3 | 4 | 5 | 5+1 |
| Max Loading (KG) | 200 | 200 | 280 | 355 | 465 | 525 | 620 |
| N.W (KG) | 24 | 26 | 32 | 50 | 54 | 65 | 66 |
| G. W (KG) | 26 | 29 | 35 | 52 | 57 | 68 | 70 |
| Packing size (cm) | 113*60*35 | 115*65*45 | 123*75*45 | ||||
| 0.9mm PVC for UB200-UB470, 1.2mm PVC for UB500-UB650 | |||||||
| Model | UB300 | UB430 | UB470 | UB500 | UB550 | UB600 | UB650 |
| Over Length (CM) | 380 | 430 | 470 | 500 | 550 | 600 | 650 |
| Over Width (CM) | 170 | 190 | 190 | 220 | 220 | 230 | 230 |
| Inside Width(CM) | 80 | 90 | 90 | 110 | 110 | 110 | 110 |
| Tube Diam. (CM) | 45 | 50 | 50 | 55 | 55 | 60 | 60 |
| Air Chamber | 3+1 | 4+1 | 4+1 | 5+1 | 5+1 | 7+1 | 7+1 |
| Max engine (HP) | 25 | 30 | 40 | 70 | 80 | 90 | 90 |
| Transom Height(cm) | 38±1 | 40±1 | 40±1 | 51±1 | 51±1 | 51±1 | 51±1 |
| Max Persons | 6 | 8 | 10 | 12 | 13 | 14 | 16 |
| Max Loading (KG) | 700 | 900 | 1050 | 1355 | 1450 | 1700 | 1800 |
| N.W (KG) | 78 | 95 | 124 | 146 | 149 | 190 | 195 |
| G. W (KG) | 83 | 105 | 130 | 152 | 155 | 200 | 225 |
| Packing size (cm) | 123*75*45 | boat:140*75*45 alu.floor:113*75*15 | boat:160*80*60 alu.floor:113*75*15 | ||||
| 0.9mm PVC for UB200-UB470, 1.2mm PVC for UB500-UB650 | |||||||

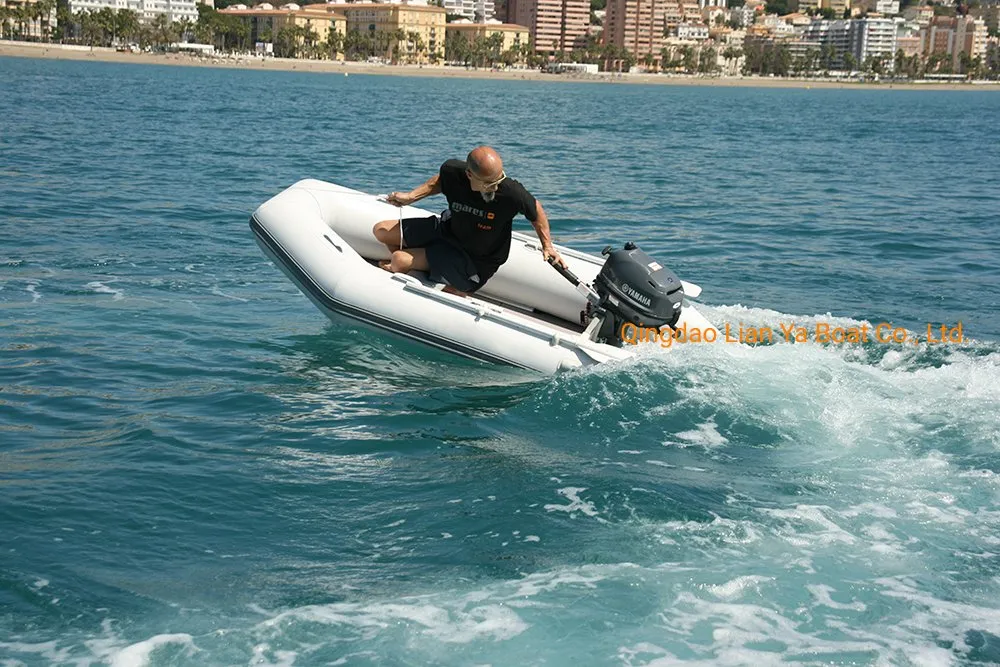

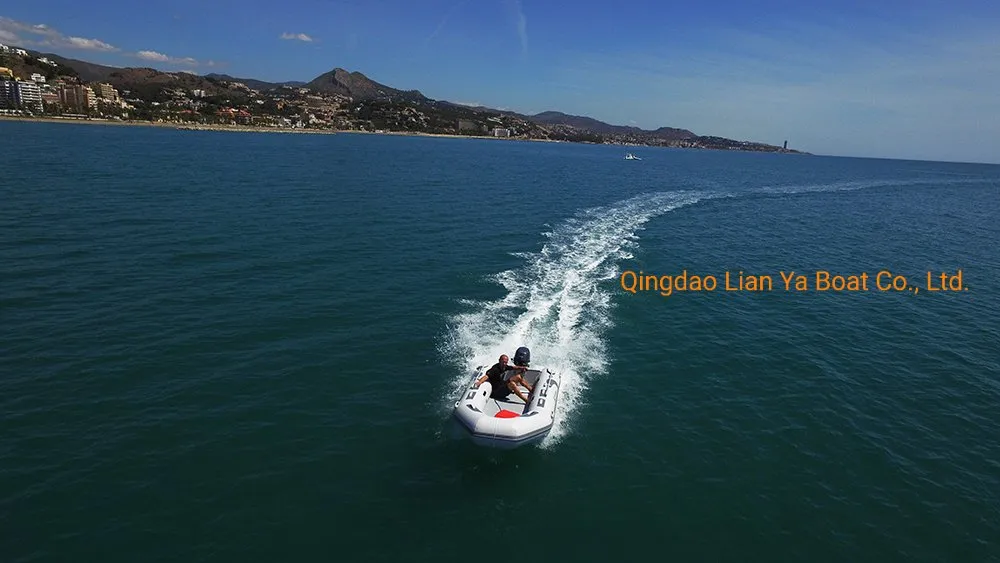

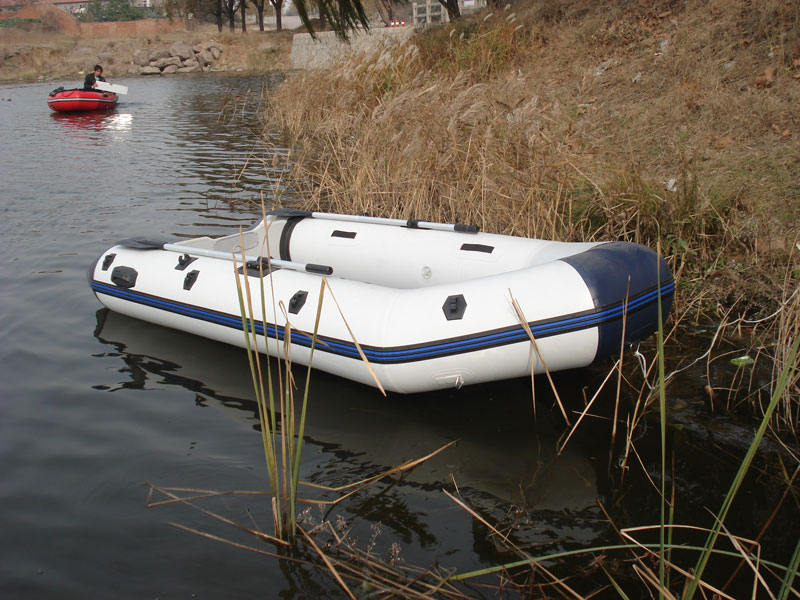

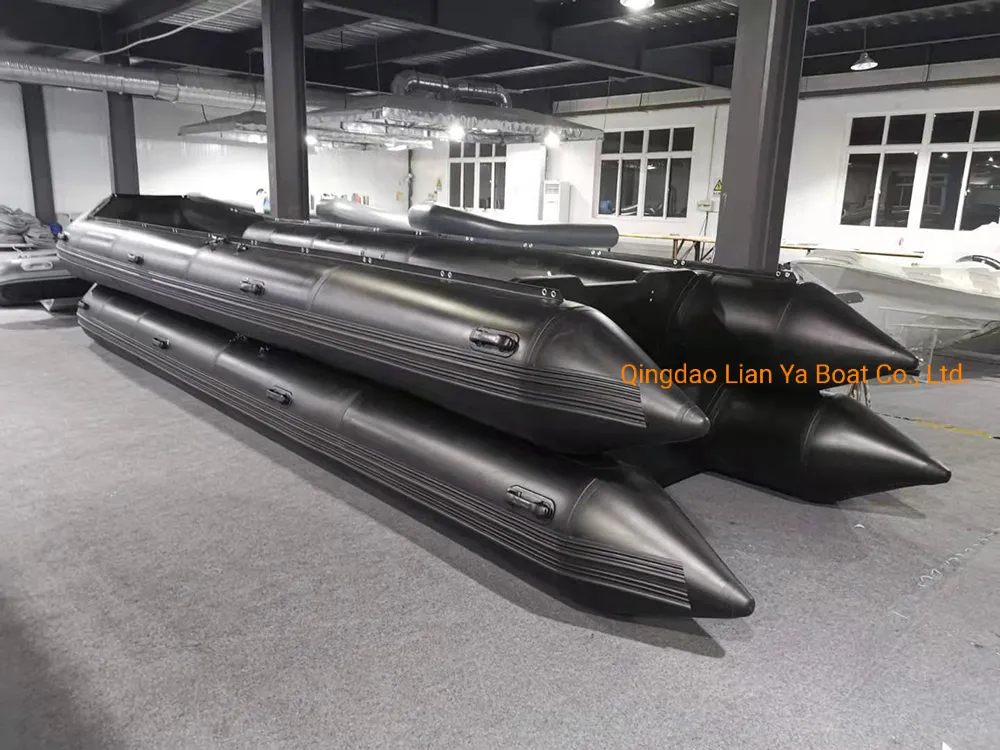

Feedback photos:

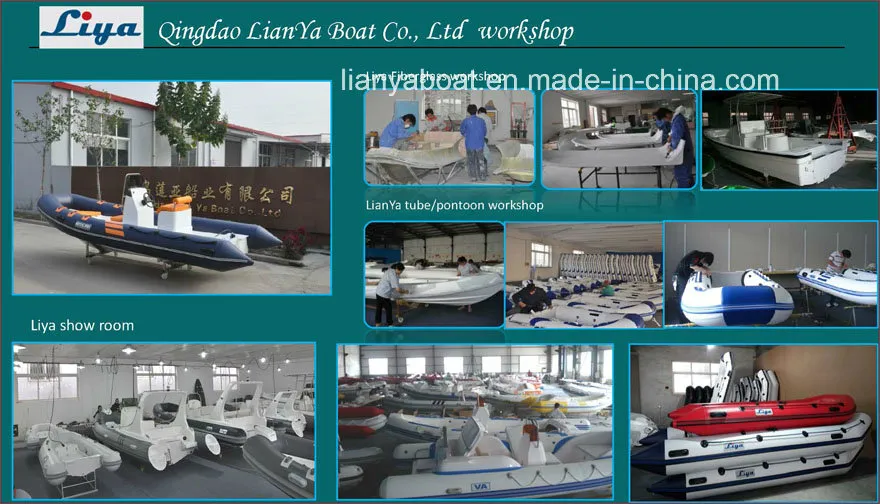

Company information:
· 12 years experienced and serious manufacturer with CE certificate
· Professional manufacture, and export RIB boats, inflatable boats, fiberglass fishing boats and rescue boats
· Can be customization

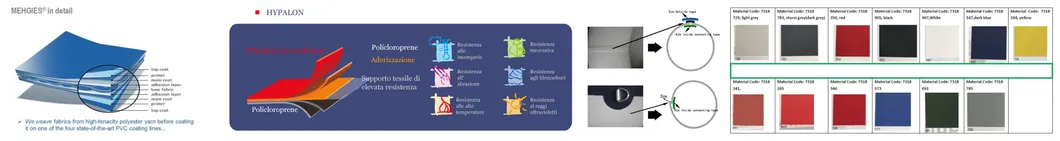

Tube Material and Guarantee:
· World No, 1 class PVC Mehler from Germany ,3 years guarantee
· World No, 1 class Hypalon ORCA from France with 5 years guarantee
Fiberglass material:
Fiberglass hull and aluminum hull have 5 years guarantee;
Ashland Gel-coat, from America;
Stainless steel material is grade 316;
Accessories have 1 year guarantee.
Technical advantage:

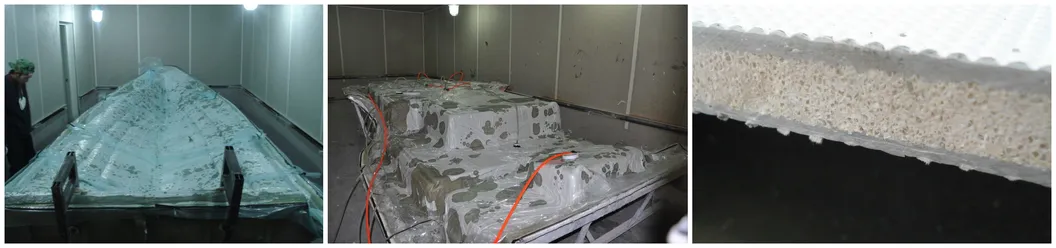

Vacuum Absorption to make fiberglass hull lighter and more stronger ,no bubble inside
PVC core inside the hull for waterproof and more safty
Longitudinal and transverse keel jointed configuration, stable and strong on big water
The inside fuel tank is removable, easy to repair or maintain
Liya Quality control:
All the boats made base on international standard ISO6185, IS012217 and with CE certification
Quality control card for each boat during in produce process
Each boat is tested for air leakage with soapy water.
It is then kept inflated for 48 hours followed by a pressure check
Before packing all the boats are cleaned and inspected.
Main Market:
· Entertainment market
· Rescue and Government use
We export to Northern Europe, France, UK, Germany, Australia, New Zealand, America and etc.
Rescue boats and navy work boats for Thai navy, Indonesian government, Pakistan Government, Africa and etc. for many years and established long-time business relationship.
Delivery and OEM available:
Lead time generally about 25-30 working days after receiving the deposit.
If special requirements ,may need longer delivery time.
· OEM available, customer's logo is available
After service:
If our quality problem, we will bear cost and guide you how to repair;
If the problem due to your incorrect operation, we also can help you repair, but this need you to pay repair cost.

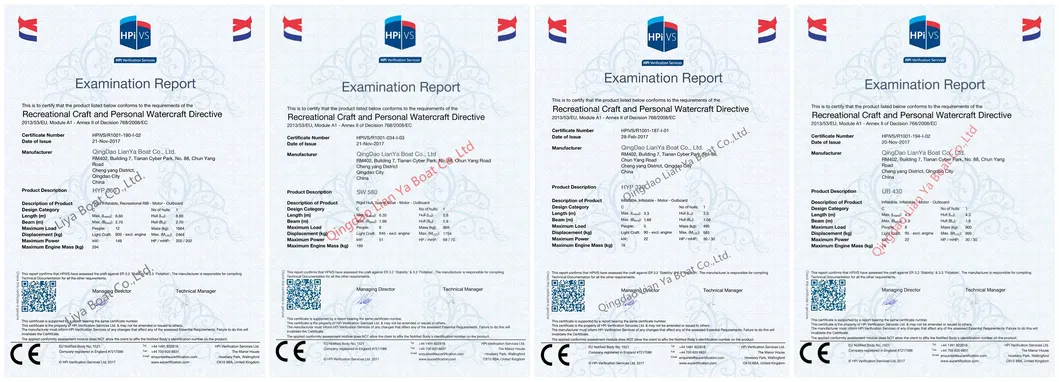

CE Certifications:

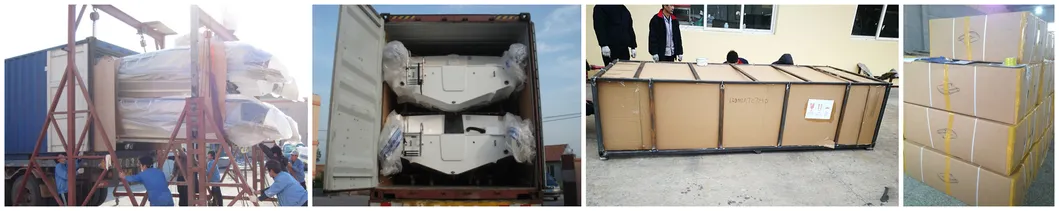

Packing:
Other products:
FRP/panga boats
RIB boats
Why choose us?
1.Experienced technicians and engineers that create unique and custom designs.
2.Quality control card for each boat during in produce process.
3.Raw material checked,with good quality supplier.
4.Each boat is tested for air leakage with soapy water. It is then kept inflated for 48 hours followed by a pressure check.
5.Finally before packing all the boats are inspected.
6.Orca Hypalon and Fiberglass hull with 5 years warranty, Korea pvc with 3 years warranty and accessories with 1 year warranty.
7.All the boats made base on international standard ISO6185, IS012217 and with CE certification.
8.Long-term partnerships with strategic suppliers.
9.Good feedback from different customer`s driving pictures.
