When engineers and procurement specialists begin sourcing a precision component, the first question is almost always the same: what exactly does this part deliver in real-world operating conditions? The CP235 143-235-000-012 is a widely referenced part number in industrial and electronic applications, and Vogi has supplied and supported this component for customers across multiple sectors. Understanding its specifications is essential before you specify, purchase, or replace it.

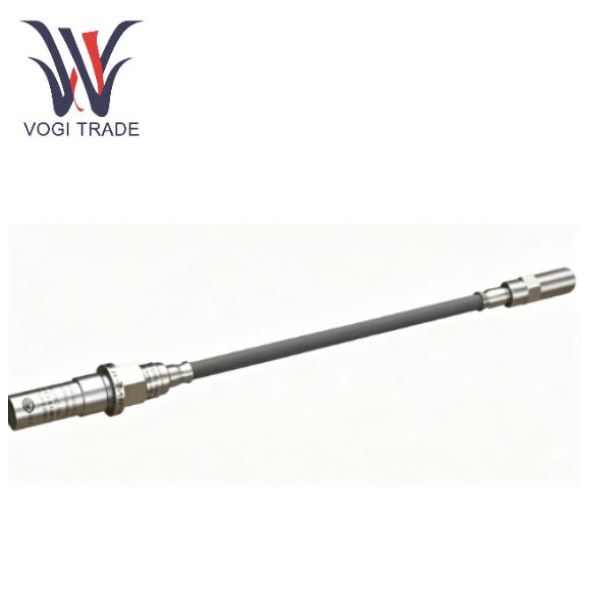

Overview of the CP235 143-235-000-012
The CP235 143-235-000-012 belongs to the CP235 series, a family of components known for stable performance in demanding environments. Vogi maintains detailed documentation on this part to help buyers confirm fit, function, and compliance before ordering.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | CP235 143-235-000-012 |
| Series | CP235 |
| Operating Voltage | 12–24 V DC (typical) |
| Current Rating | Up to 5 A |
| Operating Temperature | −40 °C to +85 °C |
| Storage Temperature | −55 °C to +105 °C |
| Insulation Resistance | ≥ 100 MΩ |
| Dielectric Withstanding Voltage | 500 V AC |
| Contact Material | Gold-plated copper alloy |
| Housing Material | Flame-retardant thermoplastic |
| Ingress Protection | IP67 (sealed configuration) |
| Mating Cycles | 500 minimum |
| Compliance | RoHS, REACH |
Performance Highlights
-
Thermal stability: The CP235 143-235-000-012 maintains electrical integrity across a wide temperature band, making it suitable for both indoor control cabinets and outdoor enclosures.
-
Corrosion resistance: Gold-plated contacts reduce oxidation risk, which extends service life in humid or chemically exposed settings.
-
Mechanical durability: A minimum of 500 mating cycles supports maintenance schedules without premature replacement.
-
Sealing capability: In its sealed configuration, the CP235 143-235-000-012 achieves IP67 protection against dust and water ingress.
Installation and Compatibility Notes
The CP235 143-235-000-012 is designed for direct mating with compatible CP235 series counterparts. Vogi recommends verifying torque values, cable gauge, and pin assignment against the official datasheet before installation. Proper seating and strain relief are critical to maintaining the rated IP67 seal.
FAQ: CP235 143-235-000-012 Common Questions
What is the operating temperature range of the CP235 143-235-000-012?
The CP235 143-235-000-012 operates reliably from −40 °C to +85 °C, with storage tolerance extending to −55 °C to +105 °C, allowing use in both cold-chain and high-heat industrial environments.
Is the CP235 143-235-000-012 RoHS compliant?
Yes, the CP235 143-235-000-012 meets RoHS and REACH requirements, and Vogi provides compliance documentation with every shipment for regulatory audits.
How many mating cycles does the CP235 143-235-000-012 support?
The CP235 143-235-000-012 is rated for a minimum of 500 mating cycles, which supports routine maintenance intervals without degrading contact resistance beyond specified limits.
Can the CP235 143-235-000-012 be used in wet environments?
In its sealed configuration, the CP235 143-235-000-012 carries an IP67 rating, protecting against dust and temporary water immersion when properly installed.
Why Source the CP235 143-235-000-012 from Vogi
Vogi combines technical documentation, traceable supply, and application support for the CP235 143-235-000-012. Every order includes specification verification, and the team can assist with cross-referencing and alternative selection when needed.
Contact Us
Ready to confirm pricing, lead time, or technical documentation for the CP235 143-235-000-012? Contact Vogi today for a same-day quotation and engineering support tailored to your project.
